C# How to: Image Convolution

Article Purpose

This article is intended to serve as an introduction to the concepts related to creating and processing convolution filters being applied on images. The Convolution filters discussed are: Blur, Gaussian Blur, Soften, Motion Blur, High Pass, Edge Detect, Sharpen and Emboss.

Sample Source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the Sample Application

A Sample Application has been included with this article’s sample source code. The Sample Application has been developed to target the Windows Forms platform. Using the Sample Application users are able to select a source/input image from the local file system and from a drop down ComboBox select a Convolution filter to apply. Filtered images can be saved to the local file system when a user clicks the ‘Save’ button.

The following screenshot shows the Image Convolution Filter sample application in action.

Image Convolution

Before delving into discussions on technical implementation details it is important to have a good understanding of the concepts behind Image Convolution.

In relation to image processing Convolution can be considered as algorithms being implemented resulting in translating input/source images. Algorithms being applied generally take the form of accepting two input values and producing a third value considered to be a modified version of one of the input values.

Image Convolution can be implemented to produce image filters such as: Blurring, Smoothing, Edge Detection, Sharpening and Embossing. The resulting filtered images still bares a relation to the input source image.

Convolution Matrix

In this article we will be implementing Convolution through means of a matrix or kernel representing the algorithms required to produce resulting filtered images. A Matrix should be considered as a two dimensional array or grid. It is required that the number or rows and columns be of an equal size, which is furthermore required to not be a factor of two. Examples of valid matrix dimensions could be 3×3 or 5×5. Dimensions such as 2×2 or 4×4 would not be valid. Generally the sum total of all the values expressed in a matrix equates to one, although it is not a strict requirement.

The following table represents an example matrix/kernel:

2	0	0
0	-1	0
0	0	-1

An important aspect to keep in mind: When implementing a convolution matrix the value of a pixel will be determined by the values of the pixel’s neighbouring pixels. The values contained in a matrix represent factor values intended to be multiplied with pixel values. In a convolution matrix the centre pixel represents the pixel currently being modified. Neighbouring matrix values express the factor to be applied to the corresponding neighbouring pixels in regards to the pixel currently being modified.

The ConvolutionFilterBase class

The sample code defines the abstract class ConvolutionFilterBase. This class is intended to represent the minimum requirements of a convolution matrix. When defining a convolution matrix we will be inheriting from the ConvolutionFilterBase class. Because this class and its members have been defined as abstract, implementing classes are required to implement all defined abstract members.

The following code snippet details the ConvolutionFilterBase definition:

public abstract class ConvolutionFilterBase
{
    public abstract string FilterName
    {
        get;
    }


    public abstract double Factor
    {
        get;
    }


    public abstract double Bias
    {
        get;
    }


    public abstract double[,] FilterMatrix
    {
        get;
    }
}

As to be expected the member property FilterMatrix is intended to represent a two dimensional array containing a convolution matrix. In some instances when the sum total of matrix values do not equate to 1 a filter might implement a Factor value other than the default of 1. Additionally some filters may also require a Bias value to be added the final result value when calculating the matrix.

Calculating a Convolution Filter

Calculating convolution filters and creating the resulting Bitmap images can be achieved by invoking the ConvolutionFilter method. This method is defined as an extension method targeting the Bitmap class. The definition of the ConvolutionFilter extension method as follows:

 public static Bitmap ConvolutionFilter<T>(this Bitmap sourceBitmap, T filter)
                                 where T : ConvolutionFilterBase
{
    BitmapData sourceData = sourceBitmap.LockBits(new Rectangle (0, 0,
                                sourceBitmap.Width, sourceBitmap.Height),
                                ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);


    byte[] pixelBuffer = new byte[sourceData.Stride * sourceData.Height];
    byte[] resultBuffer = new byte[sourceData.Stride * sourceData.Height];


    Marshal.Copy(sourceData.Scan0, pixelBuffer, 0, pixelBuffer.Length);


    sourceBitmap.UnlockBits(sourceData);


    double blue = 0.0;
    double green = 0.0;
    double red = 0.0;


    int filterWidth = filter.FilterMatrix.GetLength(1);
    int filterHeight = filter.FilterMatrix.GetLength(0);


    int filterOffset = (filterWidth-1) / 2;
    int calcOffset = 0;


    int byteOffset = 0;


    for (int offsetY = filterOffset; offsetY <
         sourceBitmap.Height - filterOffset; offsetY++)
    {
        for (int offsetX = filterOffset; offsetX <
             sourceBitmap.Width - filterOffset; offsetX++)
        {
            blue = 0;
            green = 0;
            red = 0;


            byteOffset = offsetY *
                            sourceData.Stride +
                            offsetX * 4;


            for (int filterY = -filterOffset;
                 filterY <= filterOffset; filterY++)
            {
                for (int filterX = -filterOffset;
                     filterX <= filterOffset; filterX++)
                {


                    calcOffset = byteOffset +
                                 (filterX * 4) +
                                 (filterY * sourceData.Stride);


                    blue += (double)(pixelBuffer[calcOffset]) *
                             filter.FilterMatrix[filterY + filterOffset,
                             filterX + filterOffset];


                    green += (double)(pixelBuffer[calcOffset + 1]) *
                              filter.FilterMatrix[filterY + filterOffset,
                              filterX + filterOffset];


                    red += (double)(pixelBuffer[calcOffset + 2]) *
                            filter.FilterMatrix[filterY + filterOffset,
                            filterX + filterOffset];
                }
            }


            blue = filter.Factor * blue + filter.Bias;
            green = filter.Factor * green + filter.Bias;
            red = filter.Factor * red + filter.Bias;


            if (blue > 255)
            { blue = 255; }
             else if (blue < 0)
            { blue = 0; }


            if (green > 255)
            { green = 255; }
             else if (green < 0)
            { green = 0; }


            if (red > 255)
            { red = 255; }
             else if (red < 0)
            { red = 0; }


            resultBuffer[byteOffset] = (byte)(blue);
            resultBuffer[byteOffset + 1] = (byte)(green);
            resultBuffer[byteOffset + 2] = (byte)(red);
            resultBuffer[byteOffset + 3] = 255;
        }
    }


    Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height);


    BitmapData resultData = resultBitmap.LockBits(new Rectangle(0, 0,
                            resultBitmap.Width, resultBitmap.Height),
                            ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);


    Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

The following section provides a detailed discussion of the ConvolutionFilter extension method.

ConvolutionFilter<T> – Method Signature

public static Bitmap ConvolutionFilter<T>
                     (this Bitmap sourceBitmap,
                      T filter)
                      where T : ConvolutionFilterBase

The ConvolutionFilter method defines a generic type T constrained by the requirement to be of type ConvolutionFilterBase. The filter parameter being of generic type T has to be of type ConvolutionFilterBase or a type which inherits from the ConvolutionFilterBase class.

Notice how the sourceBitmap parameter type definition is preceded by the this keyword indicating the method can be implemented as an extension method. Keep in mind extension methods are required to be declared as static.

The sourceBitmap parameter represents the source/input Bitmap upon which the filter is to be applied. Note that the ConvolutionFilter method is implemented as immutable. The input parameter values are not modified, instead a new Bitmap instance will be created and returned.

ConvolutionFilter<T> – Creating the Data Buffer

BitmapData sourceData = sourceBitmap.LockBits
                             (new Rectangle(0, 0,
                             sourceBitmap.Width,
                             sourceBitmap.Height),
                             ImageLockMode.ReadOnly,
                             PixelFormat.Format32bppArgb);


byte[] pixelBuffer = new byte[sourceData.Stride *
                              sourceData.Height];


byte[] resultBuffer = new byte[sourceData.Stride *
                               sourceData.Height];


Marshal.Copy(sourceData.Scan0, pixelBuffer,
             0, pixelBuffer.Length);


sourceBitmap.UnlockBits(sourceData);

In order to access the underlying ARGB values from a Bitmap object we first need to lock the Bitmap into memory by invoking the Bitmap.LockBits method. Locking a Bitmap into memory prevents the Garbage Collector from moving a Bitmap object to a new location in memory.

When invoking the Bitmap.LockBits method the source code instantiates a BitmapData object from the return value. The BitmapData.Stride property represents the number of bytes in a single Bitmap pixel row. In this scenario the BitmapData.Stride property should be equal to the Bitmap’s width in pixels multiplied by four seeing as every pixel consists of four bytes: Alpha, Red, Green and Blue.

The ConvolutionFilter method defines two byte buffers, of which the size is set to equal the size of the Bitmap’s underlying data. The BitmapData property BitmapData.Scan0 of type IntPtr represents the memory address of the first byte value of a Bitmap’s underlying byte buffer. Using the Marshal.Copy method we specify the starting point memory address from where to start copying the Bitmap’s byte buffer.

Important to remember is the next operation being performed: invoking the Bitmap.UnlockBits method. If a Bitmap has been locked into memory ensure releasing the lock by invoking the Bitmap.UnlockBits method.

ConvolutionFilter<T> – Iterating Rows and Columns

double blue = 0.0;
double green = 0.0;
double red = 0.0;


int filterWidth = filter.FilterMatrix.GetLength(1);
int filterHeight = filter.FilterMatrix.GetLength(0);


int filterOffset = (filterWidth-1) / 2;
int calcOffset = 0;


int byteOffset = 0;


for (int offsetY = filterOffset; offsetY <
     sourceBitmap.Height - filterOffset; offsetY++)
{
    for (int offsetX = filterOffset; offsetX <
         sourceBitmap.Width - filterOffset; offsetX++)
    {
         blue = 0;
         green = 0;
         red = 0;


         byteOffset = offsetY *
                      sourceData.Stride +
                      offsetX * 4;

The ConvolutionFilter method employs two for loops in order to iterate each pixel represented in the ARGB data buffer. Defining two for loops to iterate a one dimensional array simplifies the concept of accessing the array in terms of rows and columns.

Note that the inner loop is limited to the width of the source/input Bitmap parameter, in other words the number of horizontal pixels. Remember that the data buffer represents four bytes, Alpha, Red, Green and Blue, for each pixel. The inner loop therefore iterates entire pixels.

As discussed earlier the filter matrix has to be declared as a two dimensional array with the same odd number of rows and columns. If the current pixel being processed relates to the element at the centre of the matrix, the width of the matrix less one divided by two equates to the neighbouring pixel index values.

The index of the current pixel can be calculated by multiplying the current row index (offsetY) and the number of ARGB byte values per row of pixels (sourceData.Stride), to which is added the current column/pixel index (offsetX) multiplied by four.

ConvolutionFilter<T> – Iterating the Matrix

for (int filterY = -filterOffset;
     filterY <= filterOffset; filterY++)
{
    for (int filterX = -filterOffset;
         filterX <= filterOffset; filterX++)
    {
        calcOffset = byteOffset +
                     (filterX * 4) +
                     (filterY * sourceData.Stride);


        blue += (double)(pixelBuffer[calcOffset]) *
                 filter.FilterMatrix[filterY + filterOffset,
                 filterX + filterOffset];


        green += (double)(pixelBuffer[calcOffset + 1]) *
                  filter.FilterMatrix[filterY + filterOffset,
                  filterX + filterOffset];


        red += (double)(pixelBuffer[calcOffset + 2]) *
                filter.FilterMatrix[filterY + filterOffset,
                filterX + filterOffset];
    }
}

The ConvolutionFilter method iterates the two dimensional matrix by implementing two for loops, iterating rows and for each row iterating columns. Both loops have been declared to have a starting point equal to the negative value of half the matrix length (filterOffset). Initiating the loops with negative values simplifies implementing the concept of neighbouring pixels.

The first statement performed within the inner loop calculates the index of the neighbouring pixel in relation to the current pixel. Next the matrix value is applied as a factor to the corresponding neighbouring pixel’s individual colour components. The results are added to the totals variables blue, green and red.

In regards to each iteration iterating in terms of an entire pixel, to access individual colour components the source code adds the required colour component offset. Note: ARGB colour components are in fact expressed in reversed order: Blue, Green, Red and Alpha. In other words, a pixel’s first byte (offset 0) represents Blue, the second (offset 1) represents Green, the third (offset 2) represents Red and the last (offset 3) representing the Alpha component.

ConvolutionFilter<T> – Applying the Factor and Bias

blue = filter.Factor * blue + filter.Bias;
green = filter.Factor * green + filter.Bias;
red = filter.Factor * red + filter.Bias;


if (blue > 255)
{ blue = 255; }
 else if (blue < 0)
{ blue = 0; }


if (green > 255)
{ green = 255; }
 else if (green < 0)
{ green = 0; }


if (red > 255)
{ red = 255; }
 else if (red < 0)
{ red = 0; }


resultBuffer[byteOffset] = (byte)(blue);
resultBuffer[byteOffset + 1] = (byte)(green);
resultBuffer[byteOffset + 2] = (byte)(red);
resultBuffer[byteOffset + 3] = 255;

After iterating the matrix and calculating the matrix values of the current pixel’s Red, Green and Blue colour components we apply the Factor and add the Bias defined by the filter parameter.

Colour components may only contain a value ranging from 0 to 255 inclusive. Before we assign the newly calculated colour component value we ensure that the value falls within the required range. Values which exceed 255 are set to 255 and values less than 0 are set to 0. Note that assignment is implemented in terms of the result buffer, the original source image buffer remains unchanged.

ConvolutionFilter<T> – Returning the Result

Bitmap resultBitmap = new Bitmap(sourceBitmap.Width,
                                 sourceBitmap.Height);


BitmapData resultData = resultBitmap.LockBits(
                        new Rectangle(0, 0,
                        resultBitmap.Width,
                        resultBitmap.Height),
                        ImageLockMode.WriteOnly,
                        PixelFormat.Format32bppArgb);


Marshal.Copy(resultBuffer, 0, resultData.Scan0,
                              resultBuffer.Length);


resultBitmap.UnlockBits(resultData);


return resultBitmap;

The final steps performed by the ConvolutionFilter method involves creating a new Bitmap object instance and copying the calculated result buffer. In a similar fashion to reading underlying pixel data we copy the result buffer to the Bitmap object.

Creating Filters

The main requirement when creating a filter is to inherit from the abstract ConvolutionBaseFilter class. The following sections of this article will discuss various filter types and variations where applicable.

To illustrate the different effects resulting from applying filters all of the filters discussed make use of the same source image. The original image file is licensed under the Creative Commons Attribution 2.0 Generic license and can be downloaded from:

http://commons.wikimedia.org/wiki/File:Ara_macao_-on_a_small_bicycle-8.jpg

Blur Filters

Image blurring is typically used to reduce image noise and detail. The filter’s matrix size affects the level of blurring. A larger matrix results in higher level of blurring, whereas a smaller matrix results in a lesser level of blurring.

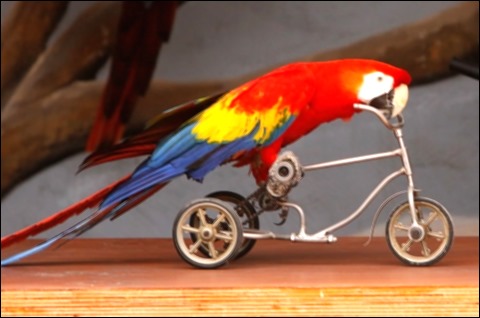

Blur3x3Filter

The Blur3x3Filter results in a slight to medium level of image blurring. The matrix consists of 9 elements in a 3×3 configuration.

public class Blur3x3Filter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Blur3x3Filter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 0.0, 0.2, 0.0, },
                        { 0.2, 0.2, 0.2, },
                        { 0.0, 0.2, 0.2, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Blur5x5Filter

The Blur5x5Filter results in a medium level of image blurring. The matrix consists of 25 elements in a 5×5 configuration. Notice the factor of 1.0 / 13.0.

public class Blur5x5Filter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Blur5x5Filter"; }
    }


    private double factor = 1.0 / 13.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 0, 0, 1, 0, 0, },
                        { 0, 1, 1, 1, 0, },
                        { 1, 1, 1, 1, 1, },
                        { 0, 1, 1, 1, 0, },
                        { 0, 0, 1, 0, 0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Gaussian3x3BlurFilter

The Gaussian3x3BlurFilter implements a Gaussian blur through a matrix of 9 elements in a 3×3 configuration. The sum total of all matrix elements equal 16, therefore the Factor is defined as 1.0 / 16.0. Applying this filter results in a slight to medium level of blurring.

public class Gaussian3x3BlurFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Gaussian3x3BlurFilter"; }
    }


    private double factor = 1.0 / 16.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 1, 2, 1, },
                        { 2, 4, 2, },
                        { 1, 2, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Gaussian5x5BlurFilter

The Gaussian5x5BlurFilter implements a Gaussian blur through a matrix of 25 elements in a 5×5 configuration. The sum total of all matrix elements equal 159, therefore the Factor is defined as 1.0 / 159.0. Applying this filter results in a medium level of blurring.

public class Gaussian5x5BlurFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Gaussian5x5BlurFilter"; }
    }


    private double factor = 1.0 / 159.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 2, 04, 05, 04, 2, },
                        { 4, 09, 12, 09, 4, },
                        { 5, 12, 15, 12, 5, },
                        { 4, 09, 12, 09, 4, },
                        { 2, 04, 05, 04, 2, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

MotionBlurFilter

By implementing the MotionBlurFilter resulting images indicate the appearance of a high level of blurring associated with motion/movement. This filter is a combination of left to right and right to left motion blurring. The matrix consists of 81 elements in a 9×9 configuration.

public class MotionBlurFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "MotionBlurFilter"; }
    }


    private double factor = 1.0 / 18.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 1, 0, 0, 0, 0, 0, 0, 0, 1, },
                        { 0, 1, 0, 0, 0, 0, 0, 1, 0, },
                        { 0, 0, 1, 0, 0, 0, 1, 0, 0, },
                        { 0, 0, 0, 1, 0, 1, 0, 0, 0, },
                        { 0, 0, 0, 0, 1, 0, 0, 0, 0, },
                        { 0, 0, 0, 1, 0, 1, 0, 0, 0, },
                        { 0, 0, 1, 0, 0, 0, 1, 0, 0, },
                        { 0, 1, 0, 0, 0, 0, 0, 1, 0, },
                        { 1, 0, 0, 0, 0, 0, 0, 0, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

MotionBlurLeftToRightFilter

The MotionBlurLeftToRightFilter creates the effect of blurring as a result of left to right movement. The matrix consists of 81 elements in a 9×9 configuration.

public class MotionBlurLeftToRightFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "MotionBlurLeftToRightFilter"; }
    }


    private double factor = 1.0 / 9.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 1, 0, 0, 0, 0, 0, 0, 0, 0, },
                        { 0, 1, 0, 0, 0, 0, 0, 0, 0, },
                        { 0, 0, 1, 0, 0, 0, 0, 0, 0, },
                        { 0, 0, 0, 1, 0, 0, 0, 0, 0, },
                        { 0, 0, 0, 0, 1, 0, 0, 0, 0, },
                        { 0, 0, 0, 0, 0, 1, 0, 0, 0, },
                        { 0, 0, 0, 0, 0, 0, 1, 0, 0, },
                        { 0, 0, 0, 0, 0, 0, 0, 1, 0, },
                        { 0, 0, 0, 0, 0, 0, 0, 0, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

MotionBlurRightToLeftFilter

The MotionBlurRightToLeftFilter creates the effect of blurring as a result of right to left movement. The matrix consists of 81 elements in a 9×9 configuration.

public class MotionBlurRightToLeftFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "MotionBlurRightToLeftFilter"; }
    }


    private double factor = 1.0 / 9.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 0, 0, 0, 0, 0, 0, 0, 0, 1, },
                        { 0, 0, 0, 0, 0, 0, 0, 1, 0, },
                        { 0, 0, 0, 0, 0, 0, 1, 0, 0, },
                        { 0, 0, 0, 0, 0, 1, 0, 0, 0, },
                        { 0, 0, 0, 0, 1, 0, 0, 0, 0, },
                        { 0, 0, 0, 1, 0, 0, 0, 0, 0, },
                        { 0, 0, 1, 0, 0, 0, 0, 0, 0, },
                        { 0, 1, 0, 0, 0, 0, 0, 0, 0, },
                        { 1, 0, 0, 0, 0, 0, 0, 0, 0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Soften Filter

The SoftenFilter can be used to smooth or soften an image. The matrix consists of 9 elements in a 3×3 configuration.

public class SoftenFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "SoftenFilter"; }
    }


    private double factor = 1.0 / 8.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 1, 1, 1, },
                        { 1, 1, 1, },
                        { 1, 1, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Sharpen Filters

Sharpening an image does not add additional detail to an image but rather adds emphasis to existing image details. Image sharpness is sometimes referred to as image crispness.

SharpenFilter

This filter is intended as a general usage sharpen filter. In a variety of scenarios this filter should provide a reasonable level of image sharpening depending on source image quality.

public class SharpenFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "SharpenFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -1, -1, },
                        { -1,  9, -1, },
                        { -1, -1, -1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

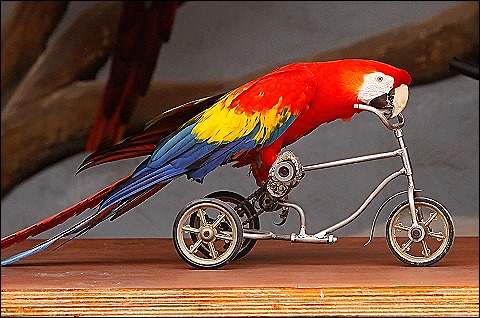

Sharpen3x3Filter

The Sharpen3x3Filter results in a medium level of image sharpness, less intense when compared to the SharpenFilter discussed previously.

public class Sharpen3x3Filter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Sharpen3x3Filter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { {  0, -1,  0, },
                        { -1,  5, -1, },
                        {  0, -1,  0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Sharpen3x3FactorFilter

The Sharpen3x3FactorFilter provides a level of image sharpness similar to the Sharpen3x3Filter explored previously. Both filters define a 9 element 3×3 matrix. The filters differ in regards to Factor values. The Sharpen3x3Filter matrix values equate to a sum total of 1, the Sharpen3x3FactorFilter in contrast equate to a sum total of 3. The Sharpen3x3FactorFilter defines a Factor of 1 / 3, resulting in matrix sum total being negated to 1.

public class Sharpen3x3FactorFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Sharpen3x3FactorFilter"; }
    }


    private double factor = 1.0 / 3.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { {  0, -2,  0, },
                        { -2, 11, -2, },
                        {  0, -2,  0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Sharpen5x5Filter

The Sharpen5x5Filter matrix defines 25 elements in a 5×5 configuration. The level of image sharpness resulting from implementing this filter to a greater extent is depended on the source image. In some scenarios result images may appear slightly softened.

public class Sharpen5x5Filter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Sharpen5x5Filter"; }
    }


    private double factor = 1.0 / 8.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -1, -1, -1, -1, },
                        { -1,  2,  2,  2, -1, },
                        { -1,  2,  8,  2,  1, },
                        { -1,  2,  2,  2, -1, },
                        { -1, -1, -1, -1, -1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

IntenseSharpenFilter

The IntenseSharpenFilter produces result images with overly emphasized edge lines.

public class IntenseSharpenFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "IntenseSharpenFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 1,  1, 1, },
                        { 1, -7, 1, },
                        { 1,  1, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Edge Detection Filters

Edge detection is the first step towards feature detection and feature extraction in digital image processing. Edges are generally perceived in images in areas exhibiting sudden differences in brightness.

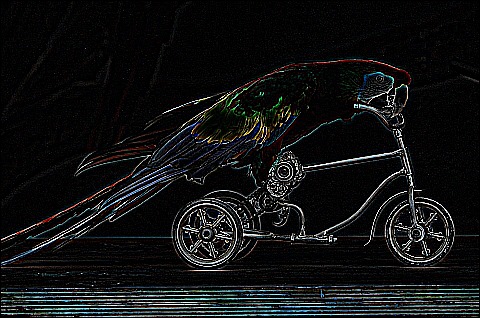

EdgeDetectionFilter

The EdgeDetectionFilter is intended to be used as a general purpose edge detection filter, considered appropriate in the majority of scenarios applied.

public class EdgeDetectionFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "EdgeDetectionFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -1, -1, },
                        { -1,  8, -1, },
                        { -1, -1, -1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

EdgeDetection45DegreeFilter

The EdgeDetection45DegreeFilter has the ability to detect edges at 45 degree angles more effectively than other edge detection filters.

public class EdgeDetection45DegreeFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "EdgeDetection45DegreeFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1,  0,  0,  0,  0, },
                        {  0, -2,  0,  0,  0, },
                        {  0,  0,  6,  0,  0, },
                        {  0,  0,  0, -2,  0, },
                        {  0,  0,  0,  0, -1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

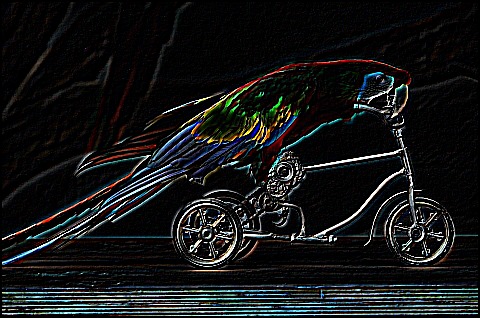

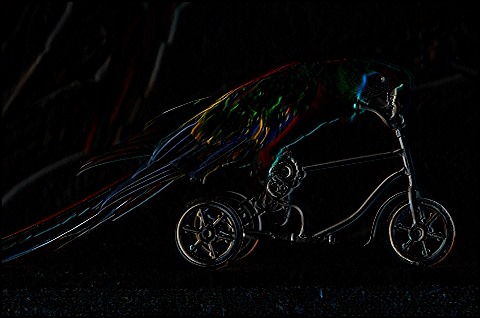

HorizontalEdgeDetectionFilter

The HorizontalEdgeDetectionFilter has the ability to detect horizontal edges more effectively than other edge detection filters.

public class HorizontalEdgeDetectionFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "HorizontalEdgeDetectionFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { {  0,  0,  0,  0,  0, },
                        {  0,  0,  0,  0,  0, },
                        { -1, -1,  2,  0,  0, },
                        {  0,  0,  0,  0,  0, },
                        {  0,  0,  0,  0,  0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

VerticalEdgeDetectionFilter

The VerticalEdgeDetectionFilter has the ability to detect vertical edges more effectively than other edge detection filters.

public class VerticalEdgeDetectionFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "VerticalEdgeDetectionFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 0,  0, -1,  0,  0, },
                        { 0,  0, -1,  0,  0, },
                        { 0,  0,  4,  0,  0, },
                        { 0,  0, -1,  0,  0, },
                        { 0,  0, -1,  0,  0, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

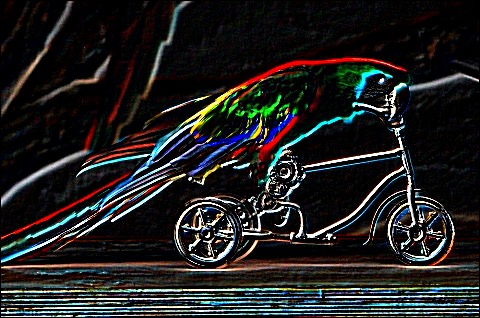

EdgeDetectionTopLeftBottomRightFilter

This filter closely resembles an embossed image indicating object depth whilst still providing a reasonable level of edge detection detail.

public class EdgeDetectionTopLeftBottomRightFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "EdgeDetectionTopLeftBottomRightFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 0.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -5,  0,  0, },
                        {  0,  0,  0, },
                        {  0,  0,  5, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

Emboss Filters

Emboss filters produce result images with an emphasis on depth, based on lines/edges expressed in an input/source image. Result images give the impression of being three dimensional to a varying extent, depended on image details defined by input images.

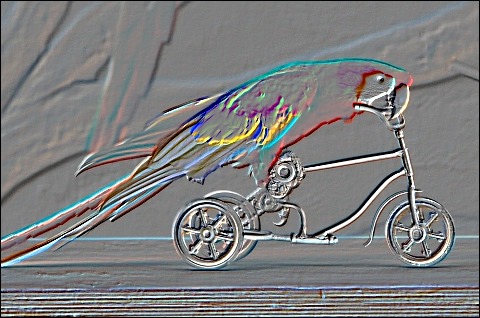

EmbossFilter

The EmbossFilter is intended as a general application emboss filter. Take note of the Bias value of 128. Without a bias value, result images would be very dark or mostly black.

public class EmbossFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "EmbossFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 128.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { 2,  0,  0, },
                        { 0, -1,  0, },
                        { 0,  0, -1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

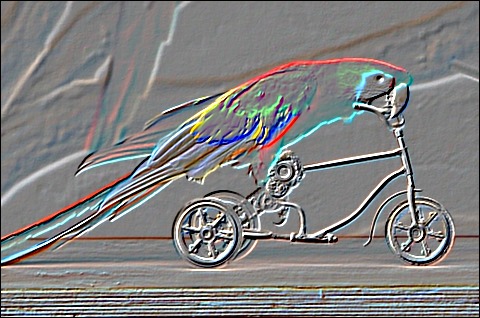

Emboss45DegreeFilter

The Emboss45DegreeFilter has the ability to produce result images with good emphasis on 45 degree edges/lines.

public class Emboss45DegreeFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "Emboss45DegreeFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 128.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -1,  0, },
                        { -1,  0,  1, },
                        {  0,  1,  1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

EmbossTopLeftBottomRightFilter

The EmbossTopLeftBottomRightFilter provides a more subtle level of embossed result images.

public class EmbossTopLeftBottomRightFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "EmbossTopLeftBottomRightFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 128.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, 0, 0, },
                        {  0, 0, 0, },
                        {  0, 0, 1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

IntenseEmbossFilter

When implementing the IntenseEmbossFilter result images provide a good three dimensional/depth level. A drawback of this filter can sometimes be noticed in a reduction image detail.

public class IntenseEmbossFilter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "IntenseEmbossFilter"; }
    }


    private double factor = 1.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 128.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -1, -1, -1,  0, },
                        { -1, -1, -1,  0,  1, },
                        { -1, -1,  0,  1,  1, },
                        { -1,  0,  1,  1,  1, },
                        {  0,  1,  1,  1,  1, }, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

High Pass

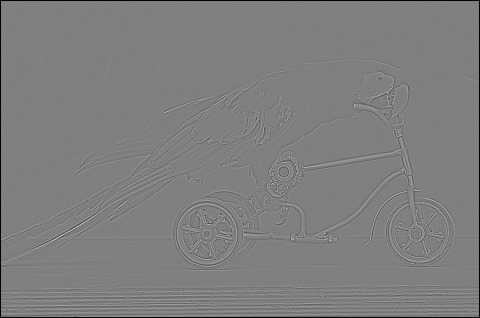

High pass filters produce result images where only high frequency components are retained.

public class HighPass3x3Filter : ConvolutionFilterBase
{
    public override string FilterName
    {
        get { return "HighPass3x3Filter"; }
    }


    private double factor = 1.0 / 16.0;
    public override double Factor
    {
        get { return factor; }
    }


    private double bias = 128.0;
    public override double Bias
    {
        get { return bias; }
    }


    private double[,] filterMatrix =
        new double[,] { { -1, -2, -1, },
                        { -2, 12, -2, },
                        { -1, -2, -1,, };


    public override double[,] FilterMatrix
    {
        get { return filterMatrix; }
    }
}

C# How to: Image Arithmetic

Published April 27, 2013 Augmented Reality , C# , Code Samples , Extension Methods , Generics , Graphic Filters , Graphics , How to , Image Arithmetic , Image Filters , Microsoft , Opensource , Tip 34 Comments
Tags: Alpha Red Green Blue, ARGB, Augmented Reality, Bitmap, Bitmap Blending, Bitmap.LockBits, BitmapData, C#, C# GDI, Code Sample, Converting Bitmaps, Converting Images, Graphic Filters, Image Add, Image Amplitude, Image Arithmetic, Image Average, Image Difference, Image Filters, Image Multiply, Image Subtract, Image Transform

Article Purpose

The objective of this article is to illustrate Image Arithmetic being implemented when blending/combining two separate images into a single result image. The types of Image Arithmetic discussed are: Average, Add, SubtractLeft, SubtractRight, Difference, Multiply, Min, Max and Amplitude.

I created the following image by implementing Image Arithmetic using as input images a photo of a friend’s ear and a photograph taken at a live concert performance by The Red Hot Chili Peppers.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the Sample Application

The Sample source code accompanying this article includes a Sample Application developed on a Windows Forms platform. The Sample Application is indented to provide an implementation of the various types of Image Arithmetic explored in this article.

The Image Arithmetic sample application allows the user to select two source/input images from the local file system. The user interface defines a ComboBox dropdown populated with entries relating to types of Image Arithmetic.

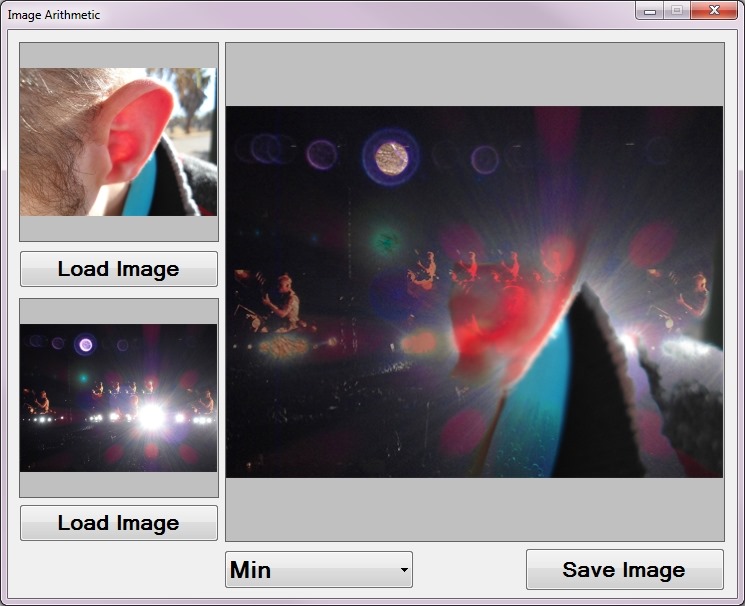

The following image is a screenshot taken whilst creating the “Red Hot Chili Peppers Concert – Side profile Ear” blended image illustrated in the first image shown in this article. Notice the stark contrast when comparing the source/input preview images. Implementing Image Arithmetic allows us to create a smoothly blended result image:

Newly created images can be saved to the local file system by clicking the ‘Save Image’ button.

Image Arithmetic

In simple terms Image Arithmetic involves the process of performing calculations on two images’ corresponding pixel colour components. The values resulting from performing calculations represent a single image which is combination of the two original source/input images. The extent to which a source/input image will be represented in the resulting image is dependent on the type of Image Arithmetic employed.

The ArithmeticBlend Extension method

In this article Image Arithmetic has been implemented as a single extension method targeting the Bitmap class. The ArithmeticBlend extension method expects as parameters two source/input Bitmap objects and a enumeration value indicating the type of Image Arithmetic to perform.

The ColorCalculationType enum defines an enumeration value for each type of Image Arithmetic supported. The definition as follows:

public enum ColorCalculationType
{
   Average,
   Add,
   SubtractLeft,
   SubtractRight,
   Difference,
   Multiply,
   Min,
   Max,
   Amplitude
}

It is only within the ArithmeticBlend extension method that we perform Image Arithmetic. This method accesses the underlying pixel data of each sample image and creates copies stored in byte arrays. Each element within the byte array data buffer represents a single colour component, either Alpha, Red, Green or Blue.

The following code snippet details the implementation of the ArithmeticBlend extension method:

 public static Bitmap ArithmeticBlend(this Bitmap sourceBitmap, Bitmap blendBitmap,
                                 ColorCalculator.ColorCalculationType calculationType)
{
    BitmapData sourceData = sourceBitmap.LockBits(new Rectangle (0, 0,
                            sourceBitmap.Width, sourceBitmap.Height),
                            ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);


    byte[] pixelBuffer = new byte[sourceData.Stride * sourceData.Height];
    Marshal.Copy(sourceData.Scan0, pixelBuffer, 0, pixelBuffer.Length);
    sourceBitmap.UnlockBits(sourceData);


    BitmapData blendData = blendBitmap.LockBits(new Rectangle (0, 0,
                           blendBitmap.Width, blendBitmap.Height),
                           ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);


    byte[] blendBuffer = new byte [blendData.Stride * blendData.Height];
    Marshal.Copy(blendData.Scan0, blendBuffer, 0, blendBuffer.Length);
    blendBitmap.UnlockBits(blendData);


    for (int k = 0; (k + 4 < pixelBuffer.Length) &&
                    (k + 4 < blendBuffer.Length); k += 4)
    {
        pixelBuffer[k] = ColorCalculator.Calculate(pixelBuffer[k],
                            blendBuffer[k], calculationType);


        pixelBuffer[k + 1] = ColorCalculator.Calculate(pixelBuffer[k + 1],
                                blendBuffer[k + 1], calculationType);


        pixelBuffer[k + 2] = ColorCalculator.Calculate(pixelBuffer[k + 2],
                                blendBuffer[k + 2], calculationType);
    }


    Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height);


    BitmapData resultData = resultBitmap.LockBits(new Rectangle (0, 0,
                            resultBitmap.Width, resultBitmap.Height),
                            ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);


    Marshal.Copy(pixelBuffer, 0, resultData.Scan0, pixelBuffer.Length);
    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

We access and copy the underlying pixel data of each input bitmap by making use of the Bitmap.LockBits method and also the Marshal.Copy method.

The method iterates both byte array data buffers simultaneously, having set the for loop condition to regard the array size of both byte arrays. Scenarios where byte array data buffers will differ in size occurs when the source images specified are not equal in terms of size dimensions.

Notice how each iteration increments the loop counter by a factor of four allowing us to treat each iteration as a complete pixel value. Remember that each data buffer element represents an individual colour component. Every four elements represents a single pixel consisting of the components: Alpha, Red, Green and Blue.

Take Note: The ordering of colour components are the exact opposite of the expected order. Each pixel’s colour components are ordered: Blue, Green, Red, Alpha. Since we are iterating an entire pixel with each iteration the for loop counter value will always equate to an element index representing the Blue colour component. In order to access the Red and Green colour components we simply add the values one and two respectively to the for loop counter value, depending on whether accessing the Green or Red colour components.

The task of performing the actual arithmetic has been encapsulated within the static Calculate method, a public member of the static class ColorCalculator. The Calculate method is more detail in the following section of this article.

The final task performed by the ArithmeticBlend method involves creating a new instance of the Bitmap class which is then updated/populated using the resulting byte array data buffer previously modified.

The ColorCalculator.Calculate method

The algorithms implemented in Image Arithmetic are encapsulated within the ColorCalculator.Calculate method. When implementing this method no knowledge of the technical implementation details are required. The parameters required are two byte values each representing a single colour component, one from each source image. The only other required parameter is an enum value of type ColorCalculationType which will indicate which type of Image Arithmetic should be implemented using the byte parameters as operands.

The following code snippet details the full implementation of the ColorCalculator.Calculate method:

 public static byte Calculate(byte color1, byte color2,
                   ColorCalculationType calculationType)
{
    byte resultValue = 0;
    int intResult = 0;


    if (calculationType == ColorCalculationType.Add)
    {
        intResult = color1 + color2;
    }
    else if (calculationType == ColorCalculationType.Average)
    {
        intResult = (color1 + color2) / 2;
    }
    else if (calculationType == ColorCalculationType.SubtractLeft)
    {
        intResult = color1 - color2;
    }
    else if (calculationType == ColorCalculationType.SubtractRight)
    {
        intResult = color2 - color1;
    }
    else if (calculationType == ColorCalculationType.Difference)
    {
        intResult = Math.Abs(color1 - color2);
    }
    else if (calculationType == ColorCalculationType.Multiply)
    {
        intResult = (int)((color1 / 255.0 * color2 / 255.0) * 255.0);
    }
    else if (calculationType == ColorCalculationType.Min)
    {
        intResult = (color1 < color2 ? color1 : color2);
    }
    else if (calculationType == ColorCalculationType.Max)
    {
        intResult = (color1 > color2 ? color1 : color2);
    }
    else if (calculationType == ColorCalculationType.Amplitude)
    {
        intResult = (int)(Math.Sqrt(color1 * color1 + color2 * color2)
                                                    / Math .Sqrt(2.0));
    }


    if (intResult < 0)
    {
        resultValue = 0;
    }
    else if (intResult > 255)
    {
         resultValue = 255;
    }
    else
    {
        resultValue = (byte)intResult;
    }


    return resultValue;
}

The bulk of the ColorCalculator.Calculate method’s implementation is set around a series of if/else if statements evaluating the enum method parameter passed when the method had been invoked.

Colour component values can only range from 0 to 255 inclusive. Calculations performed might result in values which do not fall within the valid range of values. Calculated values less than zero are set to zero and values exceeding 255 are set to 255, sometimes this is referred to clamping.

The following sections of this article provides an explanation of each type of Image Arithmetic implemented.

Image Arithmetic: Add

if (calculationType == ColorCalculationType.Add)
{
    intResult = color1 + color2;
}

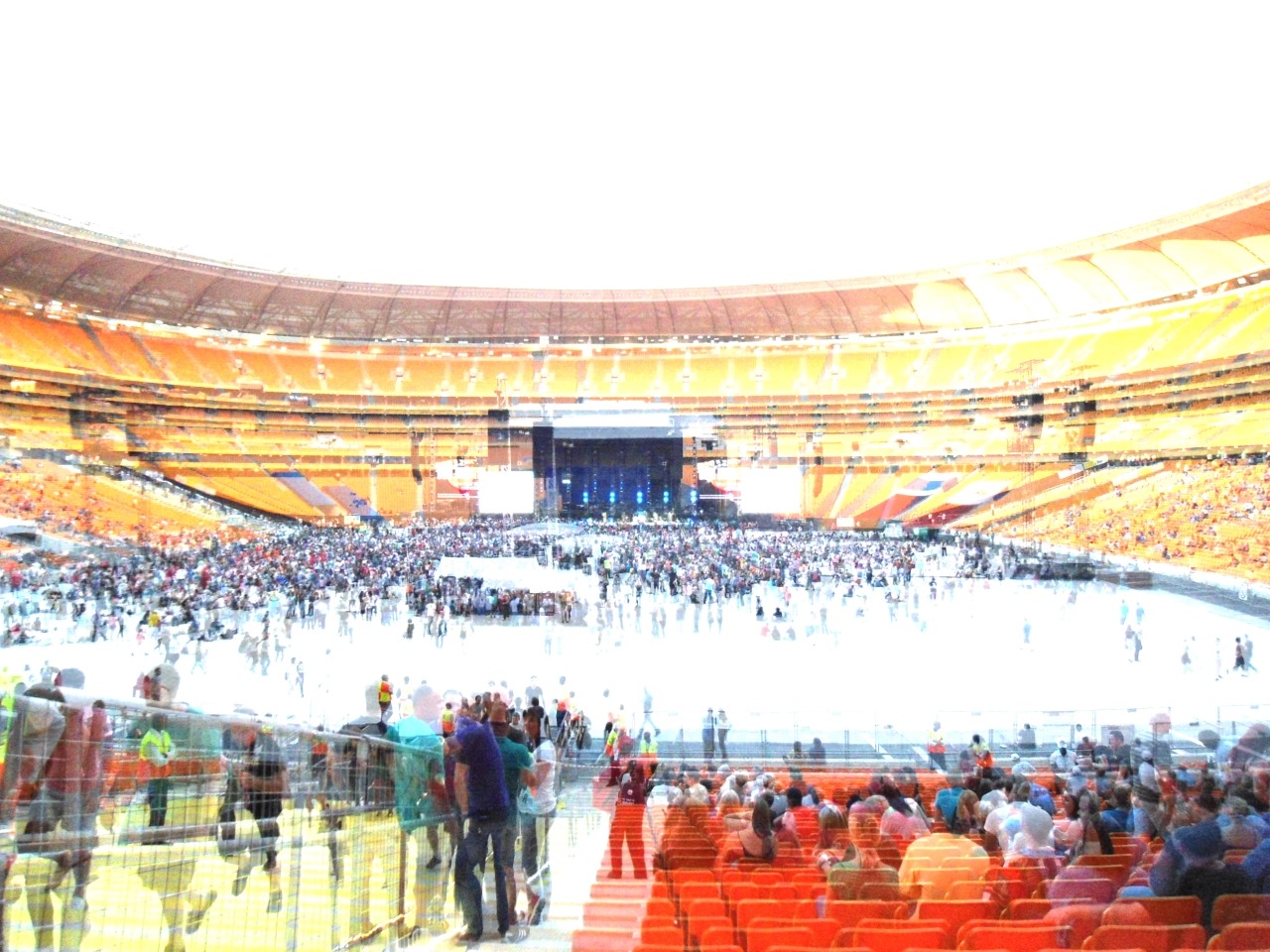

The Add algorithm is straightforward, simply adding together the two colour component values. In other words the resulting colour component will be set to equal the sum of both source colour component, provided the total does not exceed 255.

Sample Image

Image Arithmetic: Average

if (calculationType == ColorCalculationType.Average)
{
    intResult = (color1 + color2) / 2;
}

The Average algorithm calculates a simple average by adding together the two colour components and then dividing the result by two.

Sample Image

Image Arithmetic: SubtractLeft

if (calculationType == ColorCalculationType.SubtractLeft)
{
    intResult = color1 - color2;
}

The SubtractLeft algorithm subtracts the value of the second colour component parameter from the first colour component parameter.

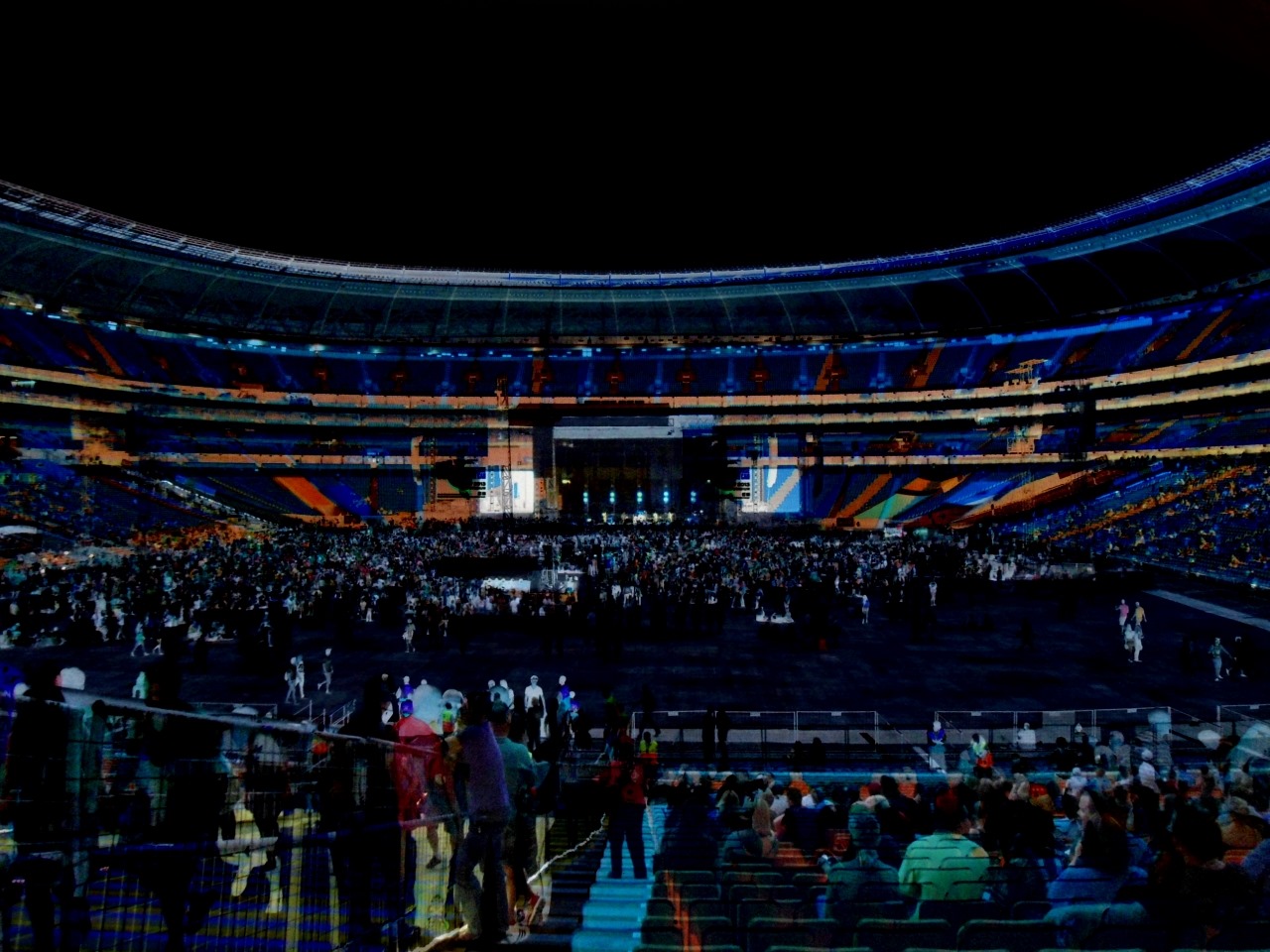

Sample Image

Image Arithmetic: SubtractRight

if (calculationType == ColorCalculationType.SubtractRight)
{
    intResult = color2 - color1;
}

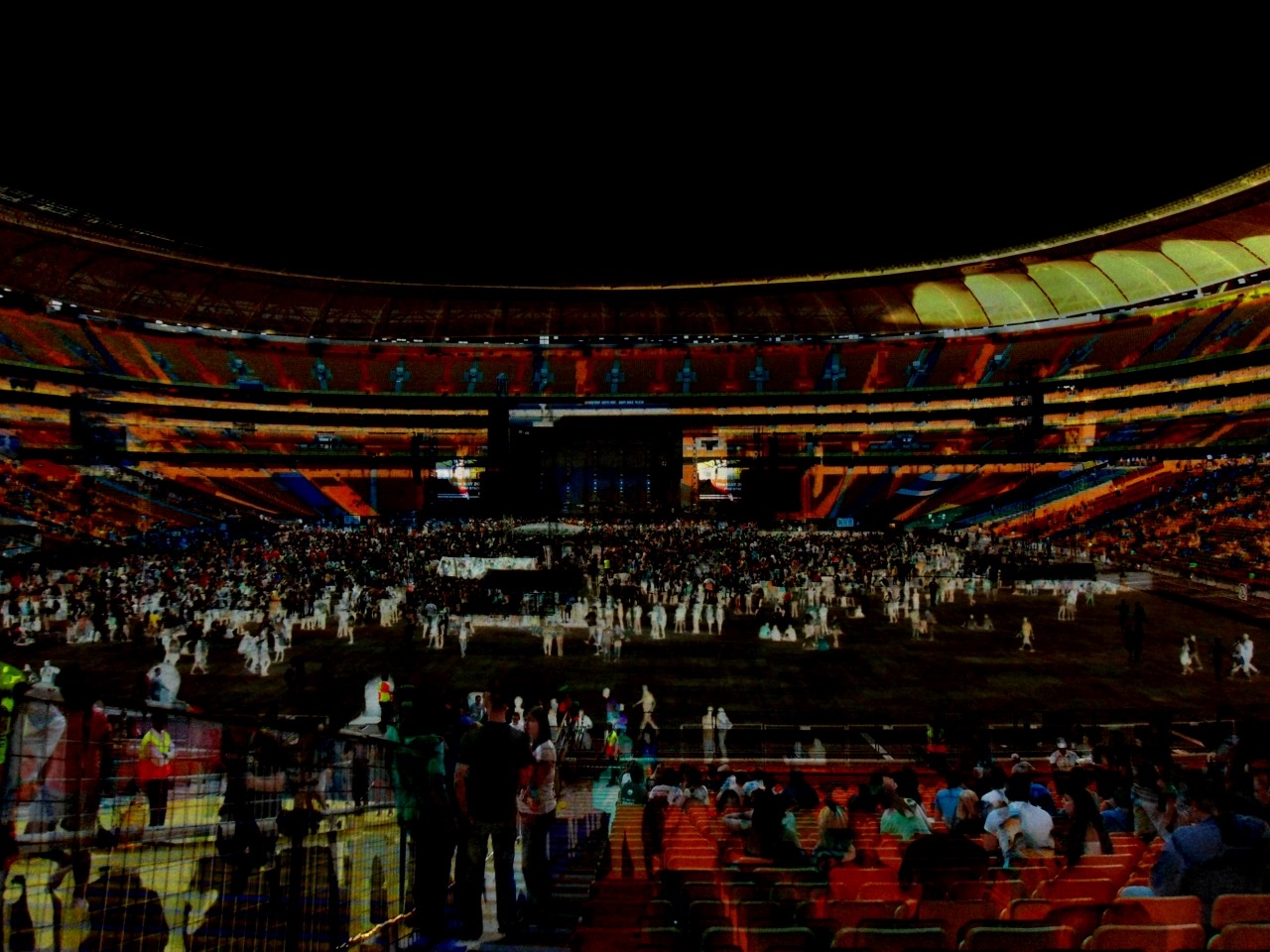

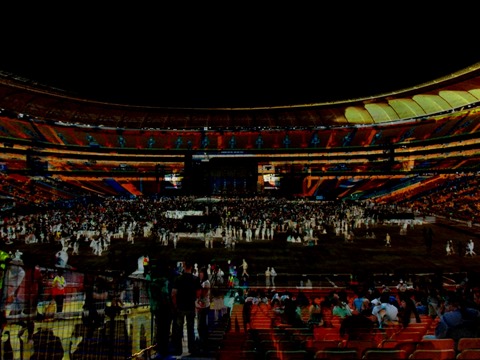

The SubtractRight algorithm, in contrast to SubtractLeft, subtracts the value of the first colour component parameter from the second colour component parameter.

Sample Image

Image Arithmetic: Difference

if (calculationType == ColorCalculationType.Difference)
{
    intResult = Math.Abs(color1 - color2);
}

The Difference algorithm subtracts the value of the second colour component parameter from the first colour component parameter. By passing the result of the subtraction as a parameter to the Math.Abs method the algorithm ensures only calculating absolute/positive values. In other words calculating the difference in value between colour component parameters.

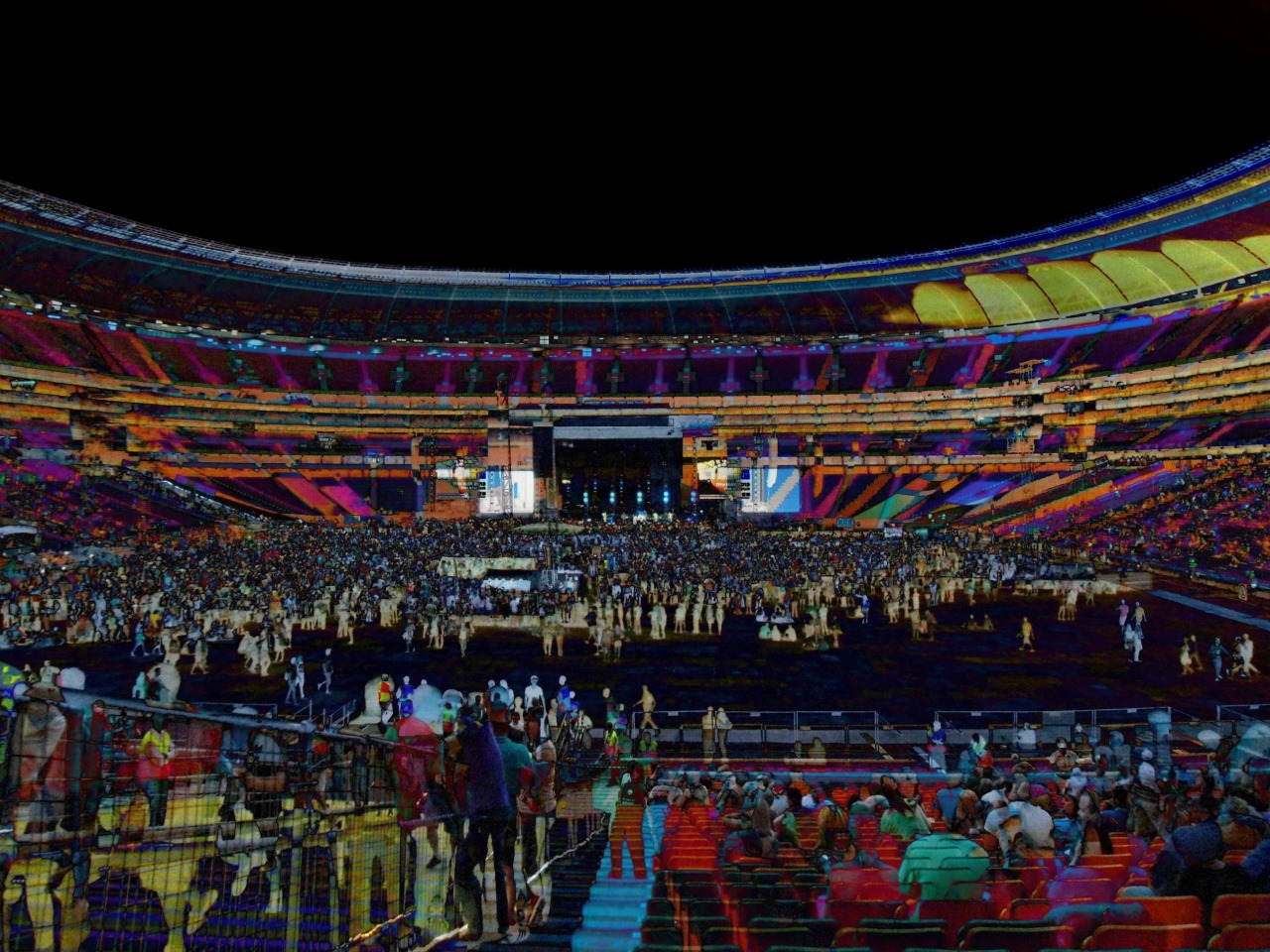

Sample Image

Image Arithmetic: Multiply

if (calculationType == ColorCalculationType.Multiply)
{
    intResult = (int)((color1 / 255.0 * color2 / 255.0) * 255.0);
}

The Multiply algorithm divides each colour component parameter by a value of 255 and the proceeds to multiply the results of the division, the result is then further multiplied by a value of 255.

Sample Image

Image Arithmetic: Min

if (calculationType == ColorCalculationType.Min)
{
    intResult = (color1 < color2 ? color1 : color2);
}

The Min algorithm simply compares the two colour component parameters and returns the smallest value of the two.

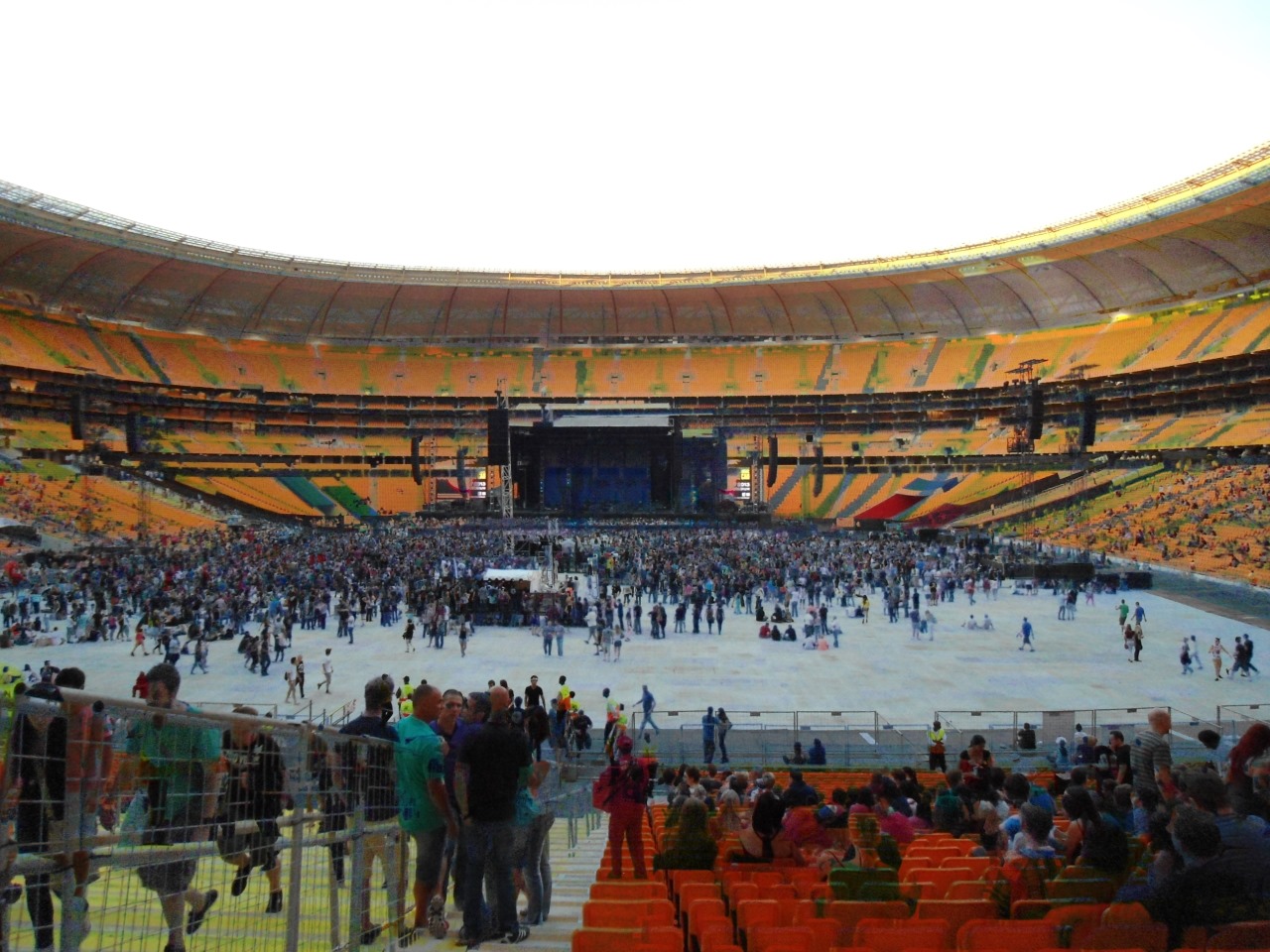

Sample Image

Image Arithmetic: Max

if (calculationType == ColorCalculationType.Max)
{
    intResult = (color1 > color2 ? color1 : color2);
}

The Max algorithm, as can be expected, will produce the exact opposite result when compared to the Min algorithm. This algorithm compares the two colour component parameters and returns the larger value of the two.

Sample Image

Image Arithmetic: Amplitude

 else if (calculationType == ColorCalculationType.Amplitude)
{
         intResult = (int)(Math.Sqrt(color1 * color1 +
                                     color2 * color2) /
                                     Math.Sqrt(2.0));
}

The Amplitude algorithm calculates the amplitude of the two colour component parameters by multiplying each colour component by itself and then sums the results. The last step divides the result thus far by the square root of two.

Sample Image

C# How to: Blending Bitmap images using colour filters

Published March 10, 2013 Augmented Reality , C# , Code Samples , Extension Methods , Generics , Graphic Filters , Graphics , How to , Image Filters , Microsoft , New Version , Opensource , Update , XML , XML Serialization 47 Comments
Tags: 32Bit Argb, ARGB Blending, Augmented Reality, Binary Image, Bitmap, Bitmap ARGB Array, Bitmap Blending, Bitmap bytes, Bitmap Filters, Bitmap.LockBits, BitmapData, BitmapData.Stride, C#, C# GDI, Code Sample, Color Filters, Image Blending, Image Filters, Image Format, Image Manipulation, Image Transform, Open source, Pixel Manipulation, Windows Forms

Article purpose

In this article we explore how to combine or blend two Bitmap images by implementing various colour filters affecting how an Image appear as part of the resulting blended image. The concepts detailed in this article are reinforced and easily reproduced by making use of the sample source code that accompanies this article.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the sample Application

The provided sample source code builds a Windows Forms application which can be used to blend two separate image files read from the file system. The methods employed when applying blending operations on two bitmaps can be adjusted to a fine degree when using the sample application. In addition the sample application provides the functionality allowing the user to save the resulting blended image and also being able to save the exact colour filters/algorithms that were applied. Filters created and saved previously can be loaded from the file system allowing users to apply the exact same filtering without having to reconfigure filtering as exposed through the application front end.

Here is a screenshot of the sample application in action:

This scenario blends an image of an airplane with an image of a pathway in a forest. As a result of the colour filtering implemented when blending the two images the output image appears to provide somewhat equal elements of both images, without expressing all the elements of the original images.

What is Colour Filtering?

In general terms making reference to a filter would imply some or other mechanism being capable of sorting or providing selective inclusion/exclusion. There is a vast number of filter algorithms in existence, each applying some form of logic in order to achieve a desired outcome.

In C# implementing colour filter algorithms targeting images have the ability to modify or manipulate the colour values expressed by an image. The extent to which colour values change as well as the level of detail implemented is determined by the algorithms/calculations performed when a filter operation becomes active.

An image can be thought of as being similar to a two dimensional array with each array element representing the data required to be expressed as an individual pixel. Two dimensional arrays are similar to the concept of a grid defined by rows and columns. The “rows” of pixels represented by an image are required to all be of equal length. When thinking in terms of a two dimensional array or grid analogy its likely to make sense that the number of rows and columns in fact translate to an image’s width and height.

An image’s colour data can be expressed beyond rows and columns of pixels. Each pixel contained in an image defines a colour value. In this article we focus on 32bit images of type ARGB.

Image Bit Depth and Pixel Colour components

Image bit depth is also referred to as the number of bits per pixel. Bits per pixel (Bpp) is an indicator of the amount of storage space required to store an image. A bit value is smallest unit of storage available in a storage medium, it can simply be referred to as being either a value of 1 or 0.

In C# natively the smallest unit of storage expressed comes in the form of the byte integral type. A byte value occupies 8 bits of storage, it is not possible in C# to express a value as a bit. The .net framework provides functionality enabling developers to develop in the concept of bit values, which in reality occupies far more than 1 bit of memory when implemented.

If we consider as an example an image formatted as 32 bits per pixel, as the name implies, for each pixel contained in an image 32 bits of additional storage is required. Knowing that a byte represents 8 bits logic dictates that 32 bits are equal to four bytes, determined by dividing 32 bits by 8. Images format as 32 bits per pixel therefore can be considered as being encoded as 4 bytes per pixel images. 32 Bpp images require 4 bytes to express a single pixel.

The data represented by a pixel’s bytes

32 Bpp equating to 4 bytes per pixel, each byte in turn representing a colour component, together being capable of expressing a single colour representing the underlying pixel. When an image format is referred to as 32 Bpp Argb the four colour components contained in each pixel are: Red, Green, Blue and the Alpha component.

An Alpha component is in indication of a particular pixel’s transparency. Each colour component is represented by a byte value. The possible value range in terms of bytes stretch from 0 to 255, inclusive, therefore a colour component can only contain a value within this range. A colour value is in fact a representation of that colour’s intensity associated with a single image pixel. A value of 0 indicating the highest possible intensity and 255 reflecting no intensity at all. When the Alpha component is set to a value of 255 it is an expression of no transparency. In the same fashion when an Alpha component equates to 0 the associated pixel is considered completely transparent, thus negating whatever colour values are expressed by the remaining colour components.

Take note that not all image formats support transparency, almost similar to how certain Image formats can only represent grayscale or just black and white pixels. An image expressed only in terms of Red, Blue and Green colour values, containing no Alpha component can be implemented as a 24 Bit RGB image format. Each pixel’s storage requirement being 24 bits or 3 bytes, representing colour intensity values for Red, Green and Blue, each limited to a value ranging from 0 to 255.

Manipulating a Pixel’s individual colour components

In C# it is possible to manipulate the value of a pixel’s individual colour components. Updating the value expressed by a colour component will most likely result in the colour value expressed by the pixel as a whole to also change. The resulting change affects the colour component’s intensity. As an example, if you were to double the value of the Blue colour component the result will most likely be that the associated pixel will represent a colour having twice the intensity of Blue when compared to the previous value.

When you manipulate colour components you are in affect applying a colour filter to the underlying image. Iterating the byte values and performing updates based on a calculation or a conditional check qualifies as an algorithm, an image/colour filter in other words.

Retrieving Image Colour components as an array of bytes

As a result of the .net Framework’s memory handling infrastructure and the implementation of the Garbage Collector it is a likely possibility that the memory address assigned to a variable when instantiated could change during the variable’s lifetime and scope, not necessarily reflecting the same address in memory when going out of scope. It is the responsibility of the Garbage Collector to ensure updating a variable’s memory reference when an operation performed by the Garbage Collector results in values kept in memory moving to a new address in memory.

When accessing an Image’s underlying data expressed as a byte array we require a mechanism to signal the Garbage Collector that an additional memory reference exist, which might not be updated when values shift in memory to a new address.

The Bitmap class provides the LockBits method, when invoked the byte values representing pixel data will not be moved in memory by the Garbage Collector until the values are unlocked by invoking the Bitmap.UnlockBits method also defined by the Bitmap class.

The LockBits method defines a return value of type BitmapData, which contains data related to the lock operation. When invoking the Bitmap.UnlockBits method you are required to pass the BitmapData object returned when you invoked LockBits.

The LockBits method provides an overridden implementation allowing the calling code to specify only a certain part of a Bitmap to lock in memory, expressed as Rectangle Structure.

The sample code that accompanies this article updates the entire Bitmap and therefore specifies the Bitmap portion to lock as a Rectangle Structure equal in size to the whole Bitmap.

The BitmapData class defines the Scan0 property of type IntPtr. BitmapData.Scan0 contains the address in memory of the Bitmap’s first pixel, in other words the starting point of a Bitmap’s underlying data.

Creating an algorithm to Filter Bitmap Colour components

The sample code is implemented to blend two Bitmaps, considering one Bitmap as as source or base canvas and the second as an overlay Bitmap. The algorithm used to implement a blending operation is defined as a class exposing public properties which affect how image blending is achieved.

The source code that implements the algorithm functions by creating an object instance of BitmapFilterData class and setting the associated public properties to certain values, as specified by the user through the user interface at runtime. The BitmapFilterData class can thus be considered to qualify as a dynamic algorithm. The following source code contains the definition of the BitmapFilterData class.

[Serializable]
public class BitmapFilterData
{
    private bool sourceBlueEnabled = false;
    public bool SourceBlueEnabled { get { return sourceBlueEnabled; }set { sourceBlueEnabled = value; } }


    private bool sourceGreenEnabled = false;
    public bool SourceGreenEnabled { get { return sourceGreenEnabled; }set { sourceGreenEnabled = value; } }


    private bool sourceRedEnabled = false;
    public bool SourceRedEnabled { get { return sourceRedEnabled; } set { sourceRedEnabled = value; } }


    private bool overlayBlueEnabled = false;
    public bool OverlayBlueEnabled { get { return overlayBlueEnabled; } set { overlayBlueEnabled = value; } }


    private bool overlayGreenEnabled = false;
    public bool OverlayGreenEnabled { get { return overlayGreenEnabled; } set { overlayGreenEnabled = value; } }


    private bool overlayRedEnabled = false;
    public bool OverlayRedEnabled { get { return overlayRedEnabled; }set { overlayRedEnabled = value; } }


    private float sourceBlueLevel = 1.0f;
    public float SourceBlueLevel { get { return sourceBlueLevel; } set { sourceBlueLevel = value; } }


    private float sourceGreenLevel = 1.0f;
    public float SourceGreenLevel { get { return sourceGreenLevel; } set { sourceGreenLevel = value; } }


    private float sourceRedLevel = 1.0f;
    public float SourceRedLevel {get { return sourceRedLevel; } set { sourceRedLevel = value; } }


    private float overlayBlueLevel = 0.0f;
    public float OverlayBlueLevel { get { return overlayBlueLevel; } set { overlayBlueLevel = value; } }


    private float overlayGreenLevel = 0.0f;
    public float OverlayGreenLevel { get { return overlayGreenLevel; } set { overlayGreenLevel = value; } }


    private float overlayRedLevel = 0.0f;
    public float OverlayRedLevel { get { return overlayRedLevel; } set { overlayRedLevel = value; } }


    private ColorComponentBlendType blendTypeBlue = ColorComponentBlendType.Add;
    public ColorComponentBlendType BlendTypeBlue { get { return blendTypeBlue; }set { blendTypeBlue = value; } }


    private ColorComponentBlendType blendTypeGreen = ColorComponentBlendType.Add;
    public ColorComponentBlendType BlendTypeGreen { get { return blendTypeGreen; } set { blendTypeGreen = value; } }


    private ColorComponentBlendType blendTypeRed = ColorComponentBlendType.Add;
    public ColorComponentBlendType BlendTypeRed { get { return blendTypeRed; } set { blendTypeRed = value; } }


    public static string XmlSerialize(BitmapFilterData filterData)
    {
        XmlSerializer xmlSerializer = new XmlSerializer(typeof(BitmapFilterData));


        XmlWriterSettings xmlSettings = new XmlWriterSettings();
        xmlSettings.Encoding = Encoding.UTF8;
        xmlSettings.Indent = true;


        MemoryStream memoryStream = new MemoryStream();
        XmlWriter xmlWriter = XmlWriter.Create(memoryStream, xmlSettings);


        xmlSerializer.Serialize(xmlWriter, filterData);
        xmlWriter.Flush();


        string xmlString = xmlSettings.Encoding.GetString(memoryStream.ToArray());


        xmlWriter.Close();
        memoryStream.Close();
        memoryStream.Dispose();


        return xmlString;
    }


    public static BitmapFilterData XmlDeserialize(string xmlString)
    {
        XmlSerializer xmlSerializer = new XmlSerializer(typeof(BitmapFilterData));
        MemoryStream memoryStream = new MemoryStream(Encoding.UTF8.GetBytes(xmlString));


        XmlReader xmlReader = XmlReader.Create(memoryStream);


        BitmapFilterData filterData = null;


        if(xmlSerializer.CanDeserialize(xmlReader) == true)
        {
            xmlReader.Close();
            memoryStream.Position = 0;


            filterData = (BitmapFilterData)xmlSerializer.Deserialize(memoryStream);
        }


        memoryStream.Close();
        memoryStream.Dispose();


        return filterData;
    }
}


public enum ColorComponentBlendType
{
    Add,
    Subtract,
    Average,
    DescendingOrder,
    AscendingOrder
}

The BitmapFilterData class define 6 public properties relating to whether a colour component should be included in calculating the specific component’s new value. The properties are:

SourceBlueEnabled
SourceGreenEnabled
SourceRedEnabled
OverlayBlueEnabled
OverlayGreenEnabled
OverlayRedEnabled

In addition a further 6 related public properties are defined which dictate a factor by which to apply a colour component as input towards the value of the resulting colour component. The properties are:

SourceBlueLevel
SourceGreenLevel
SourceRedLevel
OverlayBlueLevel
OverlayGreenLevel
OverlayRedLevel

Only if a colour component’s related Enabled property is set to true will the associated Level property be applicable when calculating the new value of the colour component.

The BitmapFilterData class next defines 3 public properties of enum type ColorComponentBlendType. This enum’s value determines the calculation performed between source and overlay colour components. Only after each colour component has been modified by applying the associated Level property factor will the calculation defined by the ColorComponentBlendType enum value be performed.

Source and Overlay colour components can be Added together, Subtracted, Averaged, Discard Larger value or Discard Smaller value. The 3 public properties that define the calculation type to be performed are:

BlendTypeBlue
BlendTypeGreen
BlendTypeRed

Notice the two public method defined by the BitmapFilterData class, XmlSerialize and XmlDeserialize. These two methods enables the calling code to Xml serialize a BitmapFilterData object to a string variable containing the object’s Xml representation, or to create an object instance based on an Xml representation.

The sample application implements Xml serialization and deserialization when saving a BitmapFilterData object to the file system and when creating a BitmapFilterData object previously saved on the file system.

Bitmap Blending Implemented as an extension method

The sample source code provides the definition for the BlendImage method, an extension method targeting the Bitmap class. This method creates a new memory bitmap, of which the colour values are calculated from a source Bitmap and an overlay Bitmap as defined by a BitmapFilterData object instance parameter. The source code listing for the BlendImage method:

public static Bitmap BlendImage(this Bitmap baseImage, Bitmap overlayImage, BitmapFilterData filterData)
{
    BitmapData baseImageData = baseImage.LockBits(new Rectangle(0, 0, baseImage.Width, baseImage.Height),

      System.Drawing.Imaging.ImageLockMode.ReadWrite, System.Drawing.Imaging.PixelFormat.Format32bppArgb);
    byte[] baseImageBuffer = new byte[baseImageData.Stride * baseImageData.Height];


    Marshal.Copy(baseImageData.Scan0, baseImageBuffer, 0, baseImageBuffer.Length);


    BitmapData overlayImageData = overlayImage.LockBits(new Rectangle(0, 0, overlayImage.Width, overlayImage.Height),

                   System.Drawing.Imaging.ImageLockMode.ReadOnly, System.Drawing.Imaging.PixelFormat.Format32bppArgb);
    byte[] overlayImageBuffer = new byte[overlayImageData.Stride * overlayImageData.Height];


    Marshal.Copy(overlayImageData.Scan0, overlayImageBuffer, 0, overlayImageBuffer.Length);


    float sourceBlue = 0;
    float sourceGreen = 0;
    float sourceRed = 0;


    float overlayBlue = 0;
    float overlayGreen = 0;
    float overlayRed = 0;


    for (int k = 0; k < baseImageBuffer.Length && k < overlayImageBuffer.Length; k += 4)
    {
        sourceBlue = (filterData.SourceBlueEnabled ? baseImageBuffer[k] * filterData.SourceBlueLevel : 0);
        sourceGreen = (filterData.SourceGreenEnabled ? baseImageBuffer[k+1] * filterData.SourceGreenLevel : 0);
        sourceRed = (filterData.SourceRedEnabled ? baseImageBuffer[k+2] * filterData.SourceRedLevel : 0);


        overlayBlue = (filterData.OverlayBlueEnabled ? overlayImageBuffer[k] * filterData.OverlayBlueLevel : 0);
        overlayGreen = (filterData.OverlayGreenEnabled ? overlayImageBuffer[k + 1] * filterData.OverlayGreenLevel : 0);
        overlayRed = (filterData.OverlayRedEnabled ? overlayImageBuffer[k + 2] * filterData.OverlayRedLevel : 0);


        baseImageBuffer[k] = CalculateColorComponentBlendValue(sourceBlue, overlayBlue, filterData.BlendTypeBlue);
        baseImageBuffer[k + 1] = CalculateColorComponentBlendValue(sourceGreen, overlayGreen, filterData.BlendTypeGreen);
        baseImageBuffer[k + 2] = CalculateColorComponentBlendValue(sourceRed, overlayRed, filterData.BlendTypeRed);
    }


    Bitmap bitmapResult = new Bitmap(baseImage.Width, baseImage.Height, PixelFormat.Format32bppArgb);
    BitmapData resultImageData = bitmapResult.LockBits(new Rectangle(0, 0, bitmapResult.Width, bitmapResult.Height),

                 System.Drawing.Imaging.ImageLockMode.WriteOnly, System.Drawing.Imaging.PixelFormat.Format32bppArgb);


    Marshal.Copy(baseImageBuffer, 0, resultImageData.Scan0, baseImageBuffer.Length);


    bitmapResult.UnlockBits(resultImageData);
    baseImage.UnlockBits(baseImageData);
    overlayImage.UnlockBits(overlayImageData);


    return bitmapResult;
}

The BlendImage method starts off by creating 2 byte arrays, intended to contain the source Bitmap and overlay Bitmap’s pixel data, expressed in 32 Bits per pixel Argb image format. As discussed earlier, both bitmap’s data are locked in memory by invoking the Bitmap.LockBits method.

Before copying Bitmap byte values we first need to declare a byte array to copy to. The size in bytes of a Bitmap’s raw byte data can be determined by multiplying BitmapData.Stride and BitmapData.Height. We obtained an instance of the BitmapData class when we invoked Bitmap.LockBits. The associated BitmapData object contains data about the lock operation, hence it needs to be supplied as a parameter when unlocking the bits when invoking Bitmap.UnlockBits.

The BitmapData.Stride property refers to the Bitmap’s scan width. The Stride property can also be described as the total number of colour components found within one row of pixels from a Bitmap image. Note that the Stride property is rounded up to a four byte boundary. We can make the deduction that the Stride property modulus 4 would always equal 0. The source code multiplies the Stride property and the BitmapData.Height property. Also known as the number of scan lines, the BitmapData.Height property is equal to the Bitmap’s height in pixels from which the BitmapData object was derived.

Multiplying BitmapData.Stride and BitmapData.Height can be considered the same as multiplying an Image’s bit depth, Image Width and also Image Height.

Once the two byte arrays have been obtained from the source and overlay Bitmaps the sample source iterates both arrays simultaneously. Notice how the code iterates through the arrays, the for loop increment statement being incremented by a value of 4 each time the loop executes. The for loop executes in terms of pixel values, remember that one pixel consists of 4 bytes/colour components when the Bitmap has been encoded as a 32Bit Argb Image.

Within the for loop the code firstly calculates a value for each colour component, except the Alpha component. The calculation is based on the values defined by the BitmapFilterData object.

Did you notice that the source code assigns colour components in the order of Blue, Green, Red? An easy oversight when it comes to manipulating Bitmaps comes in the form of not remembering the correct order of colour components. The pixel format is referred to as 32bppArgb, in fact most references state Argb being Alpha, Red, Green and Blue. The colour components representing a pixel are in fact ordered Blue, Green, Red and Alpha, the exact opposite to most naming conventions. Since the for loop’s increment statement increments by four with each loop we can access the Green, Red and Alpha components by adding the values 1, 2 or 3 to the loop’s index component, in this case defined as the variable k. Remember the colour component ordering, it can make for some interesting unintended consequences/features.

If a colour component is set to disabled in the BitmapFilterData object the new colour component will be set to a value of 0. Whilst iterating the byte arrays a set of calculations are also performed as defined by each colour component’s associated ColorComponentBlendType, defined by the BitmapFilterData object. The calculations are implemented by invoking the CalculateColorComponentBlendValue method.

Once all calculations are completed a new Bitmap object is created to which the updated pixel data is copied only after the newly created Bitmap has been locked in memory. Before returning the Bitmap which now contains the blended colour component values all Bitmaps are unlocked in memory.

Calculating Colour component Blend Values

The CalculateColorComponentBlendValue method is implemented to calculate blend values as follows:

private static byte CalculateColorComponentBlendValue(float source, float overlay, ColorComponentBlendType blendType)
{
    float resultValue = 0;
    byte resultByte = 0;


    if (blendType == ColorComponentBlendType.Add)
    {
        resultValue = source + overlay;
    }
    else if (blendType == ColorComponentBlendType.Subtract)
    {
        resultValue = source - overlay;
    }
    else if (blendType == ColorComponentBlendType.Average)
    {
        resultValue = (source + overlay) / 2.0f;

    else if (blendType == ColorComponentBlendType.AscendingOrder)
    {
        resultValue = (source > overlay ? overlay : source);
    }
    else if (blendType == ColorComponentBlendType.DescendingOrder)
    {
        resultValue = (source < overlay ? overlay : source);
    }


    if (resultValue > 255)
    {
        resultByte = 255;
    }
    else if (resultValue < 0)
    {
        resultByte = 0;
    }
    else
    {
        resultByte = (byte)resultValue;
    }


    return resultByte;
}

Different sets of calculations are performed for each colour component based on the Blend type specified by the BitmapFilterData object. It is important to note that before the method returns a result a check is performed ensuring the new colour component’s value falls within the valid range of byte values, 0 to 255. Should a value exceed 255 that value will be assigned to 255, also if a value is negative that value will be assigned to 0.

The implementation – A Windows Forms Application

The accompanying source code defines a Windows Forms application. The ImageBlending application enables a user to specify the source and overlay input Images, both of which are displayed in a scaled size on the left-hand side of the Windows Form. On the right-hand side of the Form users are presented with various controls that can be used to adjust the current colour filtering algorithm.

The following screenshot shows the user specified input source and overlay images:

The next screenshot details the controls available which can be used to modify the colour filtering algorithm being applied:

Notice the checkboxes labelled Blue, Green and Red, the check state determines whether the associated colour component’s value will be used in calculations. The six trackbar controls shown above can be used to set the exact factoring value applied to the associated colour component when implementing the colour filter. Lastly towards the bottom of the screen the three comboboxes provided indicate the ColorComponentBlendType value implemented in the colour filter calculations.

The blended image output implementing the specified colour filter is located towards the middle of the Form. Remember in the screenshot shown above, the input images being of a beach scene and the overlay being a rock concert at night. The degree and intensity towards how colours from both images feature in the output image is determined by the colour filter, as defined earlier through the user interface.

Towards the bottom of this part of the screen two buttons can be seen, labelled “Save Filter” and “Load Filter”. When a user creates a filter the filter values can be persisted to the file system by clicking Save Filter and specifying a file path. To implement a colour filter created and saved earlier users can click the Load Filter button and file browse to the correct file.

For the sake of clarity the screenshot featured below captures the entire application front end. The previous images consist of parts taken from this image:

The trackbar controls provided by the user interface enables a user to quickly and effortlessly test a colour filter. The ImageBlend application has been implemented to provide instant feedback/processing based on user input. Changing any of the colour filter values exposed by the user interface results in the colour filter being applied instantly.

Loading a Source Image

When the user clicks on the Load button associated with source images a standard Open File Dialog displays prompting the user to select a source file. Once a source image file has been selected the ImageBlend application creates a memory bitmap from the file system image. The method in which colour filtering is implemented requires that input files have a bit depth of 32 bits and is formatted as an Argb image. If a user attempts to specify an image that is not in a 32bppArgb format the source code will attempt to convert the input image to the correct format by making use of LoadArgbBitmap extension method.

Converting to the 32BppArgb format

The sample source code defines the extension method LoadArgbBitmap targeting the string class. In addition to converting image formats, this method can also be implemented to resize provided images. The LoadArgbBitmap method is invoked when a user specifies a source image and also when specifying an overlay image. In order to provide better colour filtering source and overlay images are required to be the same size. Source images are never resized, only overlay images are resized to match the size dimensions of the specified source image. The following code snippet provides the implementation of the LoadArgbBitmap method:

public  static  Bitmap  LoadArgbBitmap(this  string  filePath, Size? imageDimensions = null )
{
    StreamReader streamReader = new  StreamReader(filePath);
    Bitmap  fileBmp = (Bitmap)Bitmap.FromStream(streamReader.BaseStream);
    streamReader.Close();


    int width = fileBmp.Width;
    int height = fileBmp.Height;


    if(imageDimensions != null)
    {
        width = imageDimensions.Value.Width;
        height = imageDimensions.Value.Height;
    }


    if(fileBmp.PixelFormat != PixelFormat.Format32bppArgb || fileBmp.Width != width || fileBmp.Height != height)
    {
        fileBmp = GetArgbCopy(fileBmp, width, height);
    }


    return  fileBmp;
}

Image are only resized if the required size is known and if an image is not already the same size specified as the required size. A scenario where the required size might not yet be known can occur when the user first selects an overlay image with no source image specified yet. Whenever the source image changes the overlay image is recreated from the file system and resized if needed.

If the image specified does not conform to a 32bppArgb image format the LoadArgbBitmap invokes the GetArgbCopy method, which is defined as follows:

private static Bitmap GetArgbCopy(Bitmap sourceImage, int width, int height)
{
    Bitmap bmpNew = new Bitmap(width, height, PixelFormat.Format32bppArgb);


    using (Graphics graphics = Graphics.FromImage(bmpNew))
    {
        graphics.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;
        graphics.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBilinear;
        graphics.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality;
        graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;

        graphics.DrawImage(sourceImage, new Rectangle(0, 0, bmpNew.Width, bmpNew.Height), new Rectangle(0, 0, sourceImage.Width, sourceImage.Height), GraphicsUnit.Pixel);
        graphics.Flush();
    }


    return bmpNew;
}

The GetArgbCopy method implements GDI drawing using the Graphics class in order to resize an image.

Bitmap Blending examples

In the example above two photos were taken from the same location. The first photo was taken in the late afternoon, the second once it was dark. The resulting blended image appears to show the time of day being closer to sundown than in the first photo. The darker colours from the second photo are mostly excluded by the filter, lighter elements such as the stage lighting appear pronounced as a yellow tint in the output image.

The filter values specified are listed below as Xml. To reproduce the filter you can copy the Xml markup and save to disk specifying the file extension *.xbmp.

<?xml version="1.0" encoding="utf-8"?>
<BitmapFilterData xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <SourceBlueEnabled>true</SourceBlueEnabled>
  <SourceGreenEnabled>true</SourceGreenEnabled>
  <SourceRedEnabled>true</SourceRedEnabled>
  <OverlayBlueEnabled>true</OverlayBlueEnabled>
  <OverlayGreenEnabled>true</OverlayGreenEnabled>
  <OverlayRedEnabled>true</OverlayRedEnabled>
  <SourceBlueLevel>0.5</SourceBlueLevel>
  <SourceGreenLevel>0.3</SourceGreenLevel>
  <SourceRedLevel>0.2</SourceRedLevel>
  <OverlayBlueLevel>0.75</OverlayBlueLevel>
  <OverlayGreenLevel>0.5</OverlayGreenLevel>
  <OverlayRedLevel>0.6</OverlayRedLevel>
  <BlendTypeBlue>Subtract</BlendTypeBlue>
  <BlendTypeGreen>Add</BlendTypeGreen>
  <BlendTypeRed>Add</BlendTypeRed>
</BitmapFilterData>

Blending two night time images:

Fun Fact: In this article some of the photos featured were taken at a live concert of The Red Hot Chilli Peppers, performing at Soccer City, Johannesburg, South Africa.

C# How to: Deep copy objects using NetDataContractSerializer

Published February 22, 2013 C# , Code Samples , Extension Methods , Generics , How to , Microsoft , New Version , Opensource , Tip , XML , XML Serialization Leave a Comment
Tags: Binary serialization, C#, Code Sample, Deep Copy, deserialize to object, Extension Methods, Generics, How to, MemberwiseClone, NetDataContractSerializer, serialize to xml, Shallow Copy, Xml, Xml Deserialization, Xml Serialization

Article purpose

This article will illustrate how to create deep copies of an object by making use of the NetDataContractSerializer implemented in the form of an extension method with generic type support.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Shallow Copy and Deep Copy

When creating a copy of an object in memory, the type of copy can be described as either a shallow copy or a deep copy. The Object class defines the MemberwiseClone method, which performs a bit by bit copy of an object’s value type members. In the case of reference type members the MemberwiseClone method will create a copy of the reference, but not a copy of the Object being referenced. Creating a copy of an Object using the MemberwiseClone method will thus result in copies and the original Object still referencing the same member Object in memory when that Object is a reference type. The MemberwiseClone method performs a shallow copy when invoked.

A deep copy of an Object results in copies and the original Object not referencing the same reference type member Object in memory.

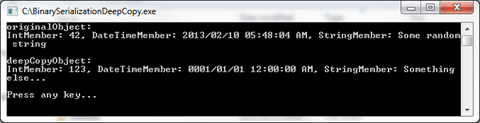

This article is a follow up article on: C# How to: Deep copy objects using Binary Serialization. When using Binary Serialization objects being serialized have to be decorated with any number of attributes which aid serialization and deserialization. An object’s definition has to at the very least specify the Serializable attribute, if not attempting serialization results in a runtime exception.

The advantage of implementing deep copy operations by making use of a NetDataContractSerializer can be argued around not having to specify serialization attributes. Although, as is the case with binary serialization, only objects that define a default/parameter less public constructor can be serialized without specifying any additional attributes.

Example custom data type

The code snippet listed below illustrates several user/custom defined data types. Notice the complete absence of any code attributes, as usually required for successful serialization/deserialization. Also pay attention to the private member variables, being an enum and user defined reference type defined towards the end of this snippet.

For the sake of convenience I overload the ToString() method, returning a string representation of an object’s member values.

public class CustomDataType
{
     private CustomEnum enumMember = CustomEnum.EnumVal1;
     private ExampleReferenceType referenceType = new ExampleReferenceType();


     public void RefreshReferenceType()
     {
         referenceType.Refresh();
     }


     private int intMember = 0;
     public int IntMember
     {
         get { return intMember; }
         set { intMember = value; }
     }


     private string stringMember = String.Empty;
     public string StringMember
     {
         get { return stringMember; }
         set { stringMember = value; }
     }


     private DateTime dateTimeMember = DateTime.MinValue;
     public DateTime DateTimeMember
     {
         get { return dateTimeMember; }
         set { dateTimeMember = value; }
     }


     public override string ToString()
     {
         return "IntMember: " + IntMember +
             ", DateTimeMember: " + DateTimeMember.ToString() +
             ", StringMember: " + stringMember + ", EnumMember: " +
             enumMember.ToString() +
             ", ReferenceType: " + referenceType.ToString();
     }


     public void SetEnumValue(CustomEnum enumValue)
     {
         enumMember = enumValue;
     }
}


public class ExampleReferenceType
{
     private DateTime createdDate = DateTime.Now;


     public void Refresh()
     {
         createdDate = DateTime.Now;
     }


     public override string ToString()
     {
         return createdDate.ToString("HH:mm:ss.fff");
     }
}


public enum CustomEnum
{
     EnumVal1 = 2,
     EnumVal2 = 4,
     EnumVal3 = 8,
     EnumVal4 = 16,
}

The DeepCopy method – Implementation as an extension method with generic type support

Extension method architecture enables developers to create methods which, from a syntactic and implementation point of view appear to be part of an existing data type. Extension methods create the perception of being updates or additions, literarily extending a data type as the name implies. Extension methods do not require access to the source code of the particular types being extended, nor does the implementation thereof require recompilation of the referenced types.

This article illustrates a combined implementation of extension methods extending the functionality of generic types. The following code snippet provides the extension method definition.

public static class ExtObject
{
    public static T DeepCopy<T>(this T objectToCopy)
    {
        MemoryStream memoryStream = new MemoryStream();


        NetDataContractSerializer netFormatter =
                       new NetDataContractSerializer();


        netFormatter.Serialize(memoryStream, objectToCopy);


        memoryStream.Position = 0;
        T returnValue = (T)netFormatter.Deserialize(memoryStream);


        memoryStream.Close();
        memoryStream.Dispose();


        return returnValue;
    }
}

The DeepCopy method is defined as an extension method by virtue of being a static method of a static class and by specifying the this keyword in its parameter definition.

DeepCopy additionally defines the generic type <T> which determines the return value’s type and the type of the parameter objectToCopy.

The method body creates an instance of a MemoryStream object and an object instance of type NetDataContractSerializer. When the Serialize method is invoked the Xml representation of the objectToCopy parameter is written to the specified MemoryStream. In a similar fashion Deserialize is invoked next, reading the Xml representation from the specified MemoryStream. The object returned is cast to the same type as the object originally serialized.

Note: From MSDN documentation:

Serializes and deserializes an instance of a type into XML stream or document using the supplied .NET Framework types.

The NetDataContractSerializer differs from the DataContractSerializer in one important way: the NetDataContractSerializer includes CLR type information in the serialized XML, whereas the DataContractSerializer does not. Therefore, the NetDataContractSerializer can be used only if both the serializing and deserializing ends share the same CLR types.

In the scenario illustrated it can be considered safe to use NetDataContractSerializer since objects being serialized are only persisted to memory for a few milliseconds and then deserialized back to an object instance.

The implementation

The DeepCopy method illustrated above appears as a member method to the CustomDataType class created earlier.

static void Main(string[] args)
{
    CustomDataType originalObject = new CustomDataType();
    originalObject.DateTimeMember = DateTime.Now;
    originalObject.IntMember = 42;
    originalObject.StringMember = "Some random string";


    CustomDataType deepCopyObject = originalObject.DeepCopy();
    deepCopyObject.DateTimeMember = DateTime.MinValue;
    deepCopyObject.IntMember = 123;
    deepCopyObject.StringMember = "Something else...";
    deepCopyObject.SetEnumValue(CustomEnum.EnumVal3);
    deepCopyObject.RefreshReferenceType();


    Console.WriteLine("originalObject: ");
    Console.WriteLine(originalObject.ToString());
    Console.WriteLine();


    Console.WriteLine("deepCopyObject: ");
    Console.WriteLine(deepCopyObject.ToString());
    Console.WriteLine();


    Console.WriteLine("Press any key...");
    Console.ReadKey();
}

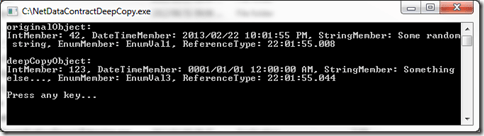

The code snippet listed above is a console application which implements the DeepCopy extension method on objects of type CustomDataType. Modifying the member properties of the second object instance will not result in the first object instance properties being modified.

C# How to: Deep copy objects using Binary Serialization

Published February 10, 2013 C# , Code Samples , Extension Methods , Generics , How to , Learn Everyday , Microsoft , Opensource , Tip , Update , XML , XML Serialization 1 Comment
Tags: Binary serialization, C#, Code Sample, Deep Copy, Extension Methods, generic type, Generics, MemberwiseClone, Open source, Reference copy, Serializable, Shallow Copy

Article purpose

This article will illustrate how to create deep copies of an object by making use of binary serialization implemented in the form of an extension method with generic type support.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Shallow Copy and Deep Copy

When creating a copy of an object in memory, the type of copy can be described as either a shallow copy or a deep copy. The Object class defines the MemberwiseClone method, which performs a bit by bit copy of an object’s value type members. In the case of reference type members the MemberwiseClone method will create a copy of the reference, but not a copy of the object being referenced. Creating a copy of an object using the MemberwiseClone method will thus result in copies and the original object still referencing the same member object in memory when that object is a reference type. The MemberwiseClone method performs a shallow copy when invoked.

A deep copy of an object results in copies and the original object not referencing the same reference type member object in memory.

Example custom data type

The sample source code provided with this article provides a user defined data type, the CustomDataType class of which the code snippet is listed below.

 [Serializable]
public class CustomDataType
{
   private int intMember = 0;
   public int IntMember
   {
       get { return  intMember; }
       set { intMember = value; }
   }


   private string stringMember = String.Empty;
   public string StringMember
   {
       get { return stringMember; }
       set { stringMember = value; }
   }


   private DateTime dateTimeMember = DateTime.MinValue;
   public DateTime DateTimeMember
   {
       get { return dateTimeMember; }
       set { dateTimeMember = value; }
   }


   public override string ToString()
   {
       return "IntMember: " + IntMember +
       ", DateTimeMember: " + DateTimeMember.ToString() +
       ", StringMember: " + stringMember;
   }
}

Notice that the CustomDataType class definition is marked with the Serializable attribute. Objects of which the type definition is not marked with the Serializable attribute cannot be serialized. Trying to perform serialization on objects not marked as Serializable will result in an exception being thrown.

The DeepCopy method – Implementation as an extension method with generic type support

This article illustrates a combined implementation of extension methods extending the functionality of generic types. The following code snippet provides the extension method definition.

public staticclassExtObject
{
    public static T DeepCopy<T>(this T objectToCopy)
    {
         MemoryStream memoryStream = new MemoryStream();
         BinaryFormatter binaryFormatter = new BinaryFormatter();
         binaryFormatter.Serialize(memoryStream, objectToCopy);


         memoryStream.Position = 0;
         T returnValue = (T)binaryFormatter.Deserialize(memoryStream);


         memoryStream.Close();
         memoryStream.Dispose();


         return returnValue;
    }
}

The DeepCopy method is defined as an extension method by virtue of being a static method of a static class and by specifying the this keyword in its parameter definition.

DeepCopy additionally defines the generic type <T> which determines the return value’s type and the type of the parameter objectToCopy.

The method body creates an instance of a MemoryStream object and an object instance of type BinaryFormatter. When BinaryFormatter.Serialize is invoked the byte representation of the objectToCopy parameter is written to the specified MemoryStream. In a similar fashion BinaryFormatter.Deserialize is invoked next, reading the byte representation from the specified MemoryStream. The object returned is cast to the same type as the object originally serialized.

The implementation

The DeepCopy method illustrated above appears as a member method to the CustomDataType class created earlier.

 static void Main(string[] args)
{
   CustomDataType originalObject = new CustomDataType();
   originalObject.DateTimeMember = DateTime.Now;
   originalObject.IntMember = 42;
   originalObject.StringMember = "Some random string";


   CustomDataType deepCopyObject = originalObject.DeepCopy();
   deepCopyObject.DateTimeMember = DateTime.MinValue;
   deepCopyObject.IntMember = 123;
   deepCopyObject.StringMember = "Something else...";


   Console.WriteLine("originalObject: " );
   Console.WriteLine(originalObject.ToString());
   Console.WriteLine();


   Console.WriteLine("deepCopyObject: " );
   Console.WriteLine(deepCopyObject.ToString());
   Console.WriteLine();


   Console.WriteLine("Press any key..." );
   Console.ReadKey();
}

Archive for the 'Generics' Category

Article Purpose

Sample Source code

Using the Sample Application

Image Convolution

Convolution Matrix

The ConvolutionFilterBase class

Calculating a Convolution Filter

ConvolutionFilter<T> – Method Signature

ConvolutionFilter<T> – Creating the Data Buffer

ConvolutionFilter<T> – Iterating Rows and Columns

ConvolutionFilter<T> – Iterating the Matrix

ConvolutionFilter<T> – Applying the Factor and Bias

ConvolutionFilter<T> – Returning the Result

Creating Filters

Blur Filters

Blur3x3Filter

Blur5x5Filter

Gaussian3x3BlurFilter

Gaussian5x5BlurFilter

MotionBlurFilter

MotionBlurLeftToRightFilter

MotionBlurRightToLeftFilter

Soften Filter

Sharpen Filters

SharpenFilter

Sharpen3x3Filter

Sharpen3x3FactorFilter

Sharpen5x5Filter

IntenseSharpenFilter

Edge Detection Filters

EdgeDetectionFilter

EdgeDetection45DegreeFilter

HorizontalEdgeDetectionFilter

VerticalEdgeDetectionFilter

EdgeDetectionTopLeftBottomRightFilter

Emboss Filters

EmbossFilter

Emboss45DegreeFilter

EmbossTopLeftBottomRightFilter

IntenseEmbossFilter

High Pass

Related Articles and Feedback

Rate this:

Share this:

Article Purpose

Sample source code

Using the Sample Application

Image Arithmetic

The ArithmeticBlend Extension method

The ColorCalculator.Calculate method

Image Arithmetic: Add

Image Arithmetic: Average

Image Arithmetic: SubtractLeft

Image Arithmetic: SubtractRight

Image Arithmetic: Difference

Image Arithmetic: Multiply

Image Arithmetic: Min

Image Arithmetic: Max

Image Arithmetic: Amplitude

Related Articles

Rate this:

Share this:

Article purpose

Sample source code

Using the sample Application

What is Colour Filtering?

Image Bit Depth and Pixel Colour components

The data represented by a pixel’s bytes

Manipulating a Pixel’s individual colour components

Retrieving Image Colour components as an array of bytes

Creating an algorithm to Filter Bitmap Colour components

Bitmap Blending Implemented as an extension method

Calculating Colour component Blend Values

The implementation – A Windows Forms Application

Loading a Source Image

Converting to the 32BppArgb format

Bitmap Blending examples

Related Articles

Rate this:
