C# How to: Compass Edge Detection

Article Purpose

This article’s objective is to illustrate concepts relating to Compass Edge Detection. The edge detection methods implemented in this article include: Prewitt, Sobel, Scharr, Kirsch and Isotropic.

Wasp: Scharr 3 x 3 x 8

Sample Source Code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the Sample Application

The sample source code accompanying this article includes a Windows Forms based sample application. When using the sample application users are able to load source/input images from and save result images to the local file system. The user interface provides a combobox which contains the supported methods of Compass Edge Detection. Selecting an item from the combobox results in the related Compass Edge Detection method being applied to the current source/input image. Supported methods are:

Prewitt3x3x4 – 3×3 Prewitt kernels in 4 compass directions
Prewitt3x3x8 – 3×3 Prewitt kernels in 8 compass directions
Prewitt5x5x4 – 5×5 Prewitt kernels in 4 compass directions
Sobel3x3x4 – 3×3 Sobel kernels in 4 compass directions
Sobel3x3x8 – 3×3 Sobel kernels in 8 compass directions
Sobel5x5x4 – 5×5 Sobel kernels in 4 compass directions
Scharr3x3x4 – 3×3 Scharr kernels in 4 compass directions
Scharr3x3x8 – 3×3 Scharr kernels in 8 compass directions
Scharr5x5x4 – 5×5 Scharr kernels in 4 compass directions
Kirsch3x3x4 – 3×3 Kirsch kernels in 4 compass directions
Kirsch3x3x8 – 3×3 Kirsch kernels in 8 compass directions
Isotropic3x3x4 – 3×3 Isotropic kernels in 4 compass directions
Isotropic3x3x8 – 3×3 Isotropic kernels in 8 compass directions

The following image is a screenshot of the Compass Edge Detection Sample Application in action:

Bee: Isotropic 3 x 3 x 8

Compass Edge Detection Overview

Compass Edge Detection as a concept title can be explained through the implementation of compass directions. Compass Edge Detection can be implemented through image convolution, using multiple matrix kernels, each suited to detecting edges in a specific direction. Often the edge directions implemented are:

North
North East
East
South East
South
South West
West
North West

Each of the compass directions listed above differ by 45 degrees. Applying a kernel rotation of 45 degrees to an existing direction specific edge detection kernel results in a new kernel suited to detecting edges in the next compass direction.

Various edge detection kernels can be implemented in Compass Edge Detection. This article and accompanying sample source code implements the following kernel types:

Prewitt
Sobel
Kirsch
Scharr
Isotropic

Prey Mantis: Sobel 3 x 3 x 8

The steps required when implementing Compass Edge Detection can be described as follows:

Determine the compass kernels. When an edge detection kernel suited to a specific direction is known, the edge detection kernels suited to the 7 remaining compass directions can be calculated. Rotating a kernel by 45 degrees around a central axis equates to the kernel suited to the next compass direction. As an example, if the edge detection kernel suited to detect edges in a northerly direction were to be rotated clockwise by 45 degrees around a central axis the result would be an edge detection kernel suited to edges in a North Easterly direction.
Iterate source image pixels. Every pixel forming part of the source/input image should be iterated, implementing convolution using each of the compass kernels.
Determine the most responsive kernel convolution. After having applied each compass kernel to the pixel currently being iterated, the most responsive compass kernel determines the output value. In other words, after having applied convolution eight times on the same pixel using each compass direction the output value should be set to the highest value calculated.
Validate and set output result. Ensure that the highest value returned from convolution does not equate to less than 0 or more than 255. Should a value be less than zero the result should be assigned as zero. In a similar fashion, should a value exceed 255 the result should be assigned as 255.

Prewitt Compass Kernels

LadyBug: Prewitt 3 x 3 x 8

Rotating Convolution Kernels

Kernels can be rotated by implementing a rotate transform. Repeatedly rotating by 45 degrees results in calculating 8 kernels, each suited to a different direction. The algorithm implemented when performing a rotate transform can be expressed as follows:

Rotate Horizontal Algorithm

Rotate Vertical Algorithm

I’ve published an in-depth article on matrix rotation available here: C# How to: Image Transform Rotate

Butterfly: Sobel 3 x 3 x 8

Implementing Kernel Rotation

The sample source code defines the RotateMatrix method. This method accepts as parameter a single kernel, defined as a two dimensional array of type double. In addition the method also expects as a parameter the degree to which the specified kernel should be rotated. The definition as follows:

public static double[, ,] RotateMatrix(double[,] baseKernel,
                                             double degrees)
{
    double[, ,] kernel = new double[(int )(360 / degrees),
        baseKernel.GetLength(0), baseKernel.GetLength(1)];


    int xOffset = baseKernel.GetLength(1) / 2;
    int yOffset = baseKernel.GetLength(0) / 2;


    for (int y = 0; y < baseKernel.GetLength(0); y++)
    {
        for (int x = 0; x < baseKernel.GetLength(1); x++)
        {
            for (int compass = 0; compass <
                kernel.GetLength(0); compass++)
            {
                double radians = compass * degrees *
                                 Math.PI / 180.0;


                int resultX = (int)(Math.Round((x - xOffset) *
                           Math.Cos(radians) - (y - yOffset) *
                           Math.Sin(radians)) + xOffset);


                int resultY = (int )(Math.Round((x - xOffset) *
                            Math.Sin(radians) + (y - yOffset) *
                            Math.Cos(radians)) + yOffset);


                kernel[compass, resultY, resultX] =
                                            baseKernel[y, x];
            }
        }
    }


    return kernel;
}

Butterfly: Prewitt 3 x 3 x 8

Implementing Compass Edge Detection

The sample source code defines several kernels which are implemented in convolution. The following code snippet provides the definition of all kernels defined:

public static double[, ,] Prewitt3x3x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -1,  0,  1,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Prewitt3x3x8
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -1,  0,  1,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 45);


        return kernel;
    }
}


public static double[, ,] Prewitt5x5x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -2, -1,  0,  1, 2,  },
           {  -2, -1,  0,  1, 2,  },
           {  -2, -1,  0,  1, 2,  },
           {  -2, -1,  0,  1, 2,  },
           {  -2, -1,  0,  1, 2,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Kirsch3x3x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -3, -3,  5,  },
           {  -3,  0,  5,  },
           {  -3, -3,  5,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Kirsch3x3x8
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -3, -3,  5,  },
           {  -3,  0,  5,  },
           {  -3, -3,  5,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 45);


        return kernel;
    }
}


public static double[, ,] Sobel3x3x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -2,  0,  2,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Sobel3x3x8
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -2,  0,  2,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 45);


        return kernel;
    }
}


public static double[, ,] Sobel5x5x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {   -5,  -4,  0,   4,  5,  },
           {   -8, -10,  0,  10,  8,  },
           {  -10, -20,  0,  20, 10,  },
           {   -8, -10,  0,  10,  8,  },
           {   -5,  -4,  0,   4,  5,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Scharr3x3x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -3,  0,  3,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Scharr3x3x8
{
    get
    {
        double[,] baseKernel = new double[,]
         { {  -1,  0,  1,  },
           {  -3,  0,  3,  },
           {  -1,  0,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 45);


        return kernel;
    }
}


public static double[, ,] Scharr5x5x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {   -1,  -1,  0,   1,  1,  },
           {   -2,  -2,  0,   2,  2,  },
           {   -3,  -6,  0,   6,  3,  },
           {   -2,  -2,  0,   2,  2,  },
           {   -1,  -1,  0,   1,  1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Isotropic3x3x4
{
    get
    {
        double[,] baseKernel = new double[,]
         { {             -1,  0,             1,  },
           {  -Math.Sqrt(2),  0,  Math.Sqrt(2),  },
           {             -1,  0,             1,  },  };


        double[, ,] kernel = RotateMatrix(baseKernel, 90);


        return kernel;
    }
}


public static double[, ,] Isotropic3x3x8
{
    get
     {
        double[,] baseKernel = new double[,]
         { {             -1,  0,             1,  },
           {  -Math.Sqrt(2),  0,  Math.Sqrt(2),  },
           {             -1,  0,             1,  }, };


        double[, ,] kernel = RotateMatrix(baseKernel, 45);


        return kernel;
    }
}

Notice how each property invokes the RotateMatrix method discussed in the previous section.

Butterfly: Scharr 3 x 3 x 8

The CompassEdgeDetectionFilter method is defined as an extension method targeting the Bitmap class. The purpose of this method is to act as a wrapper method encapsulating the technical implementation. The definition as follows:

public static Bitmap CompassEdgeDetectionFilter(this Bitmap sourceBitmap,
                                    CompassEdgeDetectionType compassType)
{
    Bitmap resultBitmap = null;


    switch (compassType)
    {
        case CompassEdgeDetectionType.Sobel3x3x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Sobel3x3x4, 1.0 / 4.0);
             } break;
        case CompassEdgeDetectionType.Sobel3x3x8:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Sobel3x3x8, 1.0/ 4.0);
             } break;
        case CompassEdgeDetectionType.Sobel5x5x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Sobel5x5x4, 1.0/ 84.0);
             } break;
        case CompassEdgeDetectionType.Prewitt3x3x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Prewitt3x3x4, 1.0 / 3.0);
             } break;
        case CompassEdgeDetectionType.Prewitt3x3x8:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Prewitt3x3x8, 1.0/ 3.0);
             } break;
        case CompassEdgeDetectionType.Prewitt5x5x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Prewitt5x5x4, 1.0 / 15.0);
             } break;
        case CompassEdgeDetectionType.Scharr3x3x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Scharr3x3x4, 1.0 / 4.0);
             } break;
        case CompassEdgeDetectionType.Scharr3x3x8:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Scharr3x3x8, 1.0 / 4.0);
             } break;
        case CompassEdgeDetectionType .Scharr5x5x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Scharr5x5x4, 1.0 / 21.0);
             } break;
        case CompassEdgeDetectionType.Kirsch3x3x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Kirsch3x3x4, 1.0 / 15.0);
             } break;
        case CompassEdgeDetectionType.Kirsch3x3x8:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Kirsch3x3x8, 1.0 / 15.0);
             } break;
        case CompassEdgeDetectionType.Isotropic3x3x4:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Isotropic3x3x4, 1.0 / 3.4);
             } break;
        case CompassEdgeDetectionType.Isotropic3x3x8:
             {
                resultBitmap =
                sourceBitmap.ConvolutionFilter(Matrix.Isotropic3x3x8, 1.0 / 3.4);
             } break;
     }


    return resultBitmap;
}

Rose: Scharr 3 x 3 x 8

Notice from the code snippet listed above, each case statement invokes the ConvolutionFilter method. This method has been defined as an extension method targeting the Bitmap class. The ConvolutionFilter extension method performs the actual task of image convolution. This method implements each kernel passed as a parameter, the highest result value will be determined as the output value. The definition as follows:

private static Bitmap ConvolutionFilter(this Bitmap sourceBitmap,
                                     double[,,] filterMatrix,
                                           double factor = 1,
                                                int bias = 0)
{
    BitmapData sourceData = sourceBitmap.LockBits(new Rectangle(0, 0,
                             sourceBitmap.Width, sourceBitmap.Height),
                                               ImageLockMode.ReadOnly,
                                         PixelFormat.Format32bppArgb);


    byte[] pixelBuffer = new byte [sourceData.Stride * sourceData.Height];
    byte[] resultBuffer = new byte [sourceData.Stride * sourceData.Height];


    Marshal.Copy(sourceData.Scan0, pixelBuffer, 0, pixelBuffer.Length);
    sourceBitmap.UnlockBits(sourceData);


    double blue = 0.0;
    double green = 0.0;
    double red = 0.0;


    double blueCompass = 0.0;
    double greenCompass = 0.0;
    double redCompass = 0.0;


    int filterWidth = filterMatrix.GetLength(1);
    int filterHeight = filterMatrix.GetLength(0);


    int filterOffset = (filterWidth-1) / 2;
    int calcOffset = 0;


    int byteOffset = 0;


    for (int offsetY = filterOffset; offsetY <
        sourceBitmap.Height - filterOffset; offsetY++)
     {
        for (int offsetX = filterOffset; offsetX <
            sourceBitmap.Width - filterOffset; offsetX++)
         {
            blue = 0;
            green = 0;
            red = 0;


            byteOffset = offsetY *
                         sourceData.Stride +
                         offsetX * 4;


            for (int compass = 0; compass <
                 filterMatrix.GetLength(0); compass++)
             {


                blueCompass = 0.0;
                greenCompass = 0.0;
                redCompass = 0.0;


                for (int filterY = -filterOffset;
                    filterY <= filterOffset; filterY++)
                 {
                    for (int filterX = -filterOffset;
                        filterX <= filterOffset; filterX++)
                     {
                        calcOffset = byteOffset +
                                     (filterX * 4) +
                                     (filterY * sourceData.Stride);


                        blueCompass += (double)(pixelBuffer[calcOffset]) *
                                        filterMatrix[compass,
                                        filterY + filterOffset,
                                        filterX + filterOffset];


                        greenCompass += (double)(pixelBuffer[calcOffset + 1]) *
                                        filterMatrix[compass,
                                        filterY + filterOffset,
                                        filterX + filterOffset];


                        redCompass += (double)(pixelBuffer[calcOffset + 2]) *
                                        filterMatrix[compass,
                                        filterY + filterOffset,
                                        filterX + filterOffset];
                     }
                 }


                blue = (blueCompass > blue ? blueCompass : blue);
                green = (greenCompass > green ? greenCompass : green);
                red = (redCompass > red ? redCompass : red);
             }


            blue = factor * blue + bias;
            green = factor * green + bias;
            red = factor * red + bias;


            if(blue > 255)
             { blue = 255; }
            else if(blue < 0)
             { blue = 0; }


            if(green > 255)
             { green = 255; }
            else if(green < 0)
             { green = 0; }


            if(red > 255)
             { red = 255; }
            else if(red < 0)
             { red = 0; }


            resultBuffer[byteOffset] = (byte)(blue);
            resultBuffer[byteOffset + 1] = (byte)(green);
            resultBuffer[byteOffset + 2] = (byte)(red);
            resultBuffer[byteOffset + 3] = 255;
         }
     }


    Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height);


    BitmapData resultData = resultBitmap.LockBits(new Rectangle (0, 0,
                             resultBitmap.Width, resultBitmap.Height),
                                              ImageLockMode.WriteOnly,
                                         PixelFormat.Format32bppArgb);


    Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

Rose: Isotropic 3 x 3 x 8

Sample Images

This article features a number of sample images. All featured images have been licensed allowing for reproduction. The following image files feature a sample images:

Wasp – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Download from Wikimedia
Ladybug – Licensed under the Creative Commons Attribution-Share Alike 2.0 Generic license. Download from Wikipedia
Ant – Released into the public domain by its author, Sean.hoyland. This applies worldwide. In some countries this may not be legally possible; if so: Sean.hoyland grants anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law. Download from Wikipedia
Prey Mantis – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Download from Wikipedia
Bee – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Download from Wikipedia
Red Pierrot Butterfly 1– Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Download from WikiMedia
Siproeta Epaphus Butterfly – Licensed under the Creative Commons Attribution 3.0 Unported license. Download from WikiMedia
Red Pierrot Butterfly 2 – Licensed under the Creative Commons Attribution 2.0 Generic license. Download from Wikipedia
Iceberg Rose – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Attribution: Stan Shebs. Download from Wikipedia
Heidi Klum Rose – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported, 2.5 Generic, 2.0 Generic and 1.0 Generic license. Download from Wikipedia
Viceroy Butterfly – Licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. Attributed to D. Gordon E. Robertson. Download from Wikipedia

The Original Image

Butterfly: Isotropic 3 x 3 x 4

Butterfly: Isotropic 3 x 3 x 8

Butterfly: Kirsch 3 x 3 x 4

Butterfly: Kirsch 3 x 3 x 8

Butterfly: Prewitt 3 x 3 x 4

Butterfly: Prewitt 3 x 3 x 8

Butterfly: Prewitt 5 x 5 x 4

Butterfly: Scharr 3 x 3 x 4

Butterfly: Scharr 3 x 3 x 8

Butterfly: Scharr 5 x 5 x 4

Butterfly: Sobel 3 x 3 x 4

Butterfly: Sobel 3 x 3 x 8

Butterfly: Sobel 5 x 5 x 4

C# How to: Image Transform Shear

Published June 16, 2013 Augmented Reality , C# , Code Samples , Extension Methods , Graphic Filters , Graphics , How to , Image Arithmetic , Image Filters , Image Processing , Image Transform , Learn Everyday , Microsoft , New Version , Opensource 29 Comments
Tags: Augmented Reality, Bitmap ARGB, Bitmap Filters, Bitmap.LockBits, BitmapData, BitmapData.Stride, Code Sample, Converting Images, Feature extraction, Graphic Filters, Image, Image Algorithms, Image processing, Image Shear, Image Transform, Machine vision, Pixel Filters, Shear Algorithm, Shear Transform, Shearing

Article Purpose

This article is focussed on illustrating the steps required in performing an image Shear Transformation. All of the concepts explored have been implemented by means of raw pixel data processing, no conventional drawing methods, such as GDI, are required.

Rabbit: Shear X 0.4, Y 0.4

Sample Source Code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the Sample Application

This article features a Windows Forms based sample application which is included as part of the accompanying sample source code. The concepts explored in this article can be illustrated in a practical implementation using the sample application.

The sample application enables a user to load source/input images from the local file system when clicking the Load Image button. In addition users are also able to save output result images to the local file system by clicking the Save Image button.

Image Shear Transformations can be applied to either X or Y, or both X and Y pixel coordinates. When using the sample application the user has option of adjusting Shear factors, as indicated on the user interface by the numeric up/down controls labelled Shear X and Shear Y.

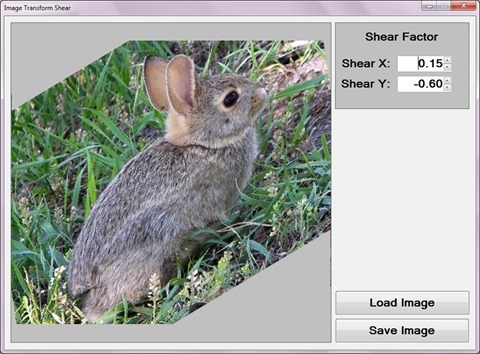

The following image is a screenshot of the Image Transform Shear Sample Application in action:

Rabbit: Shear X -0.5, Y -0.25

Image Shear Transformation

A good definition of the term Shear Transformation can be found on the Wikipedia topic related article:

In plane geometry, a shear mapping is a linear map that displaces each point in fixed direction, by an amount proportional to its signed distance from a line that is parallel to that direction.^[1] This type of mapping is also called shear transformation, transvection, or just shearing

A Shear Transformation can be applied as a horizontal shear, a vertical shear or as both. The algorithms implemented when performing a Shear Transformation can be expressed as follows:

Horizontal Shear Algorithm

Vertical Shear Algorithm

The algorithm description:

Shear(x) : The result of a horizontal Shear Transformation – The calculated X-Coordinate representing a Shear Transform.
Shear(y) : The result of a vertical Shear Transformation – The calculated Y-Coordinate representing a Shear Transform.
σ : The lower case version of the Greek alphabet letter Sigma – Represents the Shear Factor.
x : The X-Coordinate originating from the source/input image – The horizontal coordinate value intended to be sheared.
y : The Y-Coordinate originating from the source/input image – The vertical coordinate value intended to be sheared.
H : Source image height in pixels.
W : Source image width in pixels.

Note: When performing a Shear Transformation implementing both the horizontal and vertical planes each coordinate plane can be calculated using a different shearing factor.

The algorithms have been adapted in order to implement a middle pixel offset by means of subtracting the product of the related image plane boundary and the specified Shearing Factor, which will then be divided by a factor of two.

Rabbit: Shear X 1.0, Y 0.1

Implementing a Shear Transformation

The sample source code performs Shear Transformations through the implementation of the extension methods ShearXY and ShearImage.

The ShearXY extension method targets the Point structure. The algorithms discussed in the previous sections have been implemented in this function from a C# perspective. The definition as illustrated by the following code snippet:

public static Point ShearXY(this Point source, double shearX,
                                               double shearY,
                                               int offsetX,
                                               int offsetY)
{
    Point result = new Point();


    result.X = (int)(Math.Round(source.X + shearX * source.Y));
    result.X -= offsetX;


    result.Y = (int)(Math.Round(source.Y + shearY * source.X));
    result.Y -= offsetY;


    return result;
}

Rabbit: Shear X 0.0, Y 0.5

The ShearImage extension method targets the Bitmap class. This method expects as parameter values a horizontal and a vertical shearing factor. Providing a shearing factor of zero results in no image shearing being implemented in the corresponding direction. The definition as follows:

public static Bitmap ShearImage(this Bitmap sourceBitmap,
                               double shearX,
                               double shearY)
{
    BitmapData sourceData =
               sourceBitmap.LockBits(new Rectangle(0, 0,
               sourceBitmap.Width, sourceBitmap.Height),
               ImageLockMode.ReadOnly,
               PixelFormat.Format32bppArgb);


    byte[] pixelBuffer = new byte[sourceData.Stride *
                                  sourceData.Height];


    byte[] resultBuffer = new byte[sourceData.Stride *
                                   sourceData.Height];


    Marshal.Copy(sourceData.Scan0, pixelBuffer, 0,
                               pixelBuffer.Length);


    sourceBitmap.UnlockBits(sourceData);


    int xOffset = (int )Math.Round(sourceBitmap.Width *
                                        shearX / 2.0);


    int yOffset = (int )Math.Round(sourceBitmap.Height *
                                          shearY / 2.0);


    int sourceXY = 0;
    int resultXY = 0;


    Point sourcePoint = new Point();
    Point resultPoint = new Point();


    Rectangle imageBounds = new Rectangle(0, 0,
                            sourceBitmap.Width,
                           sourceBitmap.Height);


    for (int row = 0; row < sourceBitmap.Height; row++)
    {
        for (int col = 0; col < sourceBitmap.Width; col++)
        {
            sourceXY = row * sourceData.Stride + col * 4;


            sourcePoint.X = col;
            sourcePoint.Y = row;


            if (sourceXY >= 0 &&
                sourceXY + 3 < pixelBuffer.Length)
            {
                resultPoint = sourcePoint.ShearXY(shearX,
                                shearY, xOffset, yOffset);


                resultXY = resultPoint.Y * sourceData.Stride +
                           resultPoint.X * 4;


                if (imageBounds.Contains(resultPoint) &&
                                      resultXY >= 0)
                {
                    if (resultXY + 6 <= resultBuffer.Length)
                    {
                        resultBuffer[resultXY + 4] =
                             pixelBuffer[sourceXY];


                        resultBuffer[resultXY + 5] =
                             pixelBuffer[sourceXY + 1];


                        resultBuffer[resultXY + 6] =
                             pixelBuffer[sourceXY + 2];


                        resultBuffer[resultXY + 7] = 255;
                    }


                    if (resultXY - 3 >= 0)
                    {
                        resultBuffer[resultXY - 4] =
                             pixelBuffer[sourceXY];


                        resultBuffer[resultXY - 3] =
                             pixelBuffer[sourceXY + 1];


                        resultBuffer[resultXY - 2] =
                             pixelBuffer[sourceXY + 2];


                        resultBuffer[resultXY - 1] = 255;
                    }


                    if (resultXY + 3 < resultBuffer.Length)
                    {
                        resultBuffer[resultXY] =
                         pixelBuffer[sourceXY];


                        resultBuffer[resultXY + 1] =
                         pixelBuffer[sourceXY + 1];


                        resultBuffer[resultXY + 2] =
                         pixelBuffer[sourceXY + 2];


                        resultBuffer[resultXY + 3] = 255;
                    }
                }
            }
        }
    }


    Bitmap resultBitmap = new Bitmap(sourceBitmap.Width,
                                     sourceBitmap.Height);


    BitmapData resultData =
               resultBitmap.LockBits(new Rectangle(0, 0,
               resultBitmap.Width, resultBitmap.Height),
               ImageLockMode.WriteOnly,
               PixelFormat.Format32bppArgb);


    Marshal.Copy(resultBuffer, 0, resultData.Scan0,
                               resultBuffer.Length);


    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

Rabbit: Shear X 0.5, Y 0.0

Sample Images

This article features a number of sample images. All featured images have been licensed allowing for reproduction.

The sample images featuring the image of a Desert Cottontail Rabbit is licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license and can be downloaded from Wikipedia. The original author is attributed as Larry D. Moore.

The sample images featuring the image of a Rabbit in Snow is licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license and can be downloaded from Wikipedia. The original author is attributed as George Tuli.

The sample images featuring the image of an Eastern Cottontail Rabbit has been released into the public domain by its author. The original image can be downloaded from Wikipedia.

The sample images featuring the image of a Mountain Cottontail Rabbit is in the public domain in the United States because it is a work prepared by an officer or employee of the United States Government as part of that person’s official duties under the terms of Title 17, Chapter 1, Section 105 of the US Code. The original image can be downloaded from Wikipedia.

Rabbit: Shear X 1.0, Y 0.0

Rabbit: Shear X 0.5, Y 0.1

Rabbit: Shear X -0.5, Y -0.25

Rabbit: Shear X -0.5, Y 0.0

Rabbit: Shear X 0.25, Y 0.0

Rabbit: Shear X 0.50, Y 0.0

Rabbit: Shear X 0.0, Y 0.5

Rabbit: Shear X 0.0, Y 0.25

Rabbit: Shear X 0.0, Y 1.0

C# How to: Swapping Bitmap ARGB Colour Channels

Published March 22, 2013 Augmented Reality , C# , Code Samples , Extension Methods , Graphic Filters , Graphics , How to , Image Arithmetic , Image Filters , Image Processing , Microsoft , Opensource , Tip 49 Comments
Tags: Alpha Red Green Blue, ARGB, ARGB Blending, Augmented Reality, Bitmap.LockBits, C#, C# GDI, Extension Methods, Generating Icons, Graphic Filters, Image, Image Algorithms, Image Filters, Image Manipulation, Image Transform, Open source, Pixel Filters, Pixel Manipulation, Swapping ARGB, System.Drawing, System.Drawing.Bitmap

Article Purpose

The intention of this article is to explain and illustrate the various possible combinations that can be implemented when swapping the underlying colour channels related to a Bitmap image. The concepts explained can easily be replicated by making use of the included sample application.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the sample Application

The sample application associated with this article allows the user to select a source image, apply a colour shifting option. The user is provided with the option to save to disk the resulting new image. The image below is a screenshot of the Bitmap ARGB Swapping application in action:

The scenario illustrated above shows an image of flowers being transformed by swapping the underlying colour channels. In this case the ShiftLeft algorithm had been applied. The original image is licenced under the Creative Commons Attribution-Share Alike 3.0 Unported, the original image can be downloaded from Wikipedia.

Types of Colour Swapping

The sample source code defines the enum type ColorSwapType, which represents the possible combinations of colour channel swapping that can be applied to a Bitmap. The source code extract below provides the definition of the ColorSwapType enum:

public enum ColorSwapType
{
    ShiftRight,
    ShiftLeft,
    SwapBlueAndRed,
    SwapBlueAndGreen,
    SwapRedAndGreen,
}

When directly manipulating a Bitmap object’s pixel values an important detail should be noted: Bitmap colour channels in memory are represented in the order Blue, Green, Red and Alpha despite being commonly referred to by abbreviation ARGB!

The following list describes each colour swapping type’s outcome:

ShiftRight: Starting at Blue, each colour’s value is set to the colour channel to the right. The value of Blue is applied to Red, Red’s original value applied to Green, Green’s original value applied to Blue.
ShiftLeft: Starting at Blue, each colour’s value is set to the colour channel to the left. The value of Blue is applied to Green, Green’s original value applied to Red, Red’s original value applied to Blue.
SwapBlueAndRed: The value of the Blue channel is applied to the Red channel and the original value of the Red channel is then applied to the Blue channel. The value of the Green channel remains unchanged.
SwapBlueAndGreen: The value of the Blue channel is applied to the Green channel and the original value of the Green channel is then applied to the Blue channel. The value of the Red channel remains unchanged.
SwapRedAndGreen: The value of the Red channel is applied to the Green channel and the original value of the Green channel is then applied to the Red channel. The value of the Blue channel remains unchanged.

The Colour Swap Filter

The sample source code defines the ColorSwapFilter class. This class provides several member properties, which in combination represent the options involved in applying a colour swap filter. The source code snippet below provides the definition of the ColorSwapFilter type:

public class ColorSwapFilter
{
   private ColorSwapType swapType = ColorSwapType.ShiftRight;
   public ColorSwapType SwapType
   {
        get{ return swapType;}
        set{ swapType = value;}
   }


   private bool swapHalfColorValues = false;
   public bool SwapHalfColorValues
   {
        get{ return swapHalfColorValues;}
        set{ swapHalfColorValues = value;}
   }


   private bool invertColorsWhenSwapping = false;
   public bool InvertColorsWhenSwapping
   {
        get{ return invertColorsWhenSwapping;}
        set{ invertColorsWhenSwapping = value;}
   }


   public enum ColorSwapType
   {
        ShiftRight,
        ShiftLeft,
        SwapBlueAndRed,
        SwapBlueAndGreen,
        SwapRedAndGreen,
   }
}

The member properties defined by the ColorSwapFilter class:

Implementing the ColorSwapType enum discussed earlier, the SwapType member property defines the type of colour channel swapping to apply.
Before swapping colour channel values, colour values can be inverted depending on whether InvertColorsWhenSwapping equates to true.
In order to reduce the intensity of the resulting image, the SwapHalfColorValues property should be set to true. The end result being destination colour channels are set to 50% of relevant source colour channel values.

Applying the Colour Swap Filter

The sample source code accompanying this article defines the SwapColorsCopy method, an extension method targeting Bitmap class. When invoking the SwapColorsCopy extension method, the calling code is required to specify an input Bitmap and an instance of the ColorSwapFilter class. By virtue of being an extension method the input/source Bitmap will be specified by the Bitmap object instance invoking the SwapColorsCopy method.

The source code listing below provides the definition of the SwapColorsCopy extension method.

public static Bitmap SwapColorsCopy(this Bitmap originalImage, ColorSwapFilter swapFilterData)
{
    BitmapData sourceData = originalImage.LockBits
                            (new Rectangle(0, 0, originalImage.Width, originalImage.Height),
                            ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);


    byte[] resultBuffer = new byte[sourceData.Stride * sourceData.Height];
    Marshal.Copy(sourceData.Scan0, resultBuffer, 0, resultBuffer.Length);
    originalImage.UnlockBits(sourceData);


    byte sourceBlue = 0, resultBlue = 0,
            sourceGreen = 0, resultGreen = 0,
            sourceRed = 0, resultRed = 0;
    byte byte2 = 2, maxValue = 255;


    for (int k = 0; k < resultBuffer.Length; k += 4)
    {
        sourceBlue = resultBuffer[k];
        sourceGreen = resultBuffer[k + 1];
        sourceRed = resultBuffer[k + 2];


        if (swapFilterData.InvertColorsWhenSwapping == true)
        {
            sourceBlue = (byte)(maxValue - sourceBlue);
            sourceGreen = (byte)(maxValue - sourceGreen);
            sourceRed = (byte)(maxValue - sourceRed);
        }


        if (swapFilterData.SwapHalfColorValues == true)
        {
            sourceBlue = (byte)(sourceBlue / byte2);
            sourceGreen = (byte)(sourceGreen / byte2);
            sourceRed = (byte)(sourceRed / byte2);
        }


        switch (swapFilterData.SwapType)
        {
            case ColorSwapFilter.ColorSwapType.ShiftRight:
               {
                    resultBlue = sourceGreen;
                    resultRed = sourceBlue;
                    resultGreen = sourceRed;

                    break;
               }
            case ColorSwapFilter.ColorSwapType.ShiftLeft:
               {
                    resultBlue = sourceRed;
                    resultRed = sourceGreen;
                    resultGreen = sourceBlue;

                    break;
               }
            case ColorSwapFilter.ColorSwapType.SwapBlueAndRed:
               {
                    resultBlue = sourceRed;
                    resultRed = sourceBlue;

                    break;
               }
            case ColorSwapFilter.ColorSwapType.SwapBlueAndGreen:
               {
                    resultBlue = sourceGreen;
                    resultGreen = sourceBlue;

                    break;
               }
            case ColorSwapFilter.ColorSwapType.SwapRedAndGreen:
               {
                    resultRed = sourceGreen;
                    resultGreen = sourceGreen;

                    break;
               }
        }


        resultBuffer[k] = resultBlue;
        resultBuffer[k + 1] = resultGreen;
        resultBuffer[k + 2] = resultRed;
    }


    Bitmap resultBitmap = new Bitmap(originalImage.Width, originalImage.Height,
                                        PixelFormat.Format32bppArgb);

    BitmapData resultData = resultBitmap.LockBits
                            (new Rectangle(0, 0, resultBitmap.Width, resultBitmap.Height),
                            ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);


    Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

Due to the architecture and implementation of the .net Garbage Collector when manipulating a Bitmap object’s underlying colour values we need to ensure locking the relevant data buffer in memory. When invoking the Bitmap class’ LockBits method the calling code prevents the Garbage Collector from shifting and updating memory references. Once a Bitmap’s underlying pixel buffer has been locked in memory the source code creates a data buffer of type byte array and then copies the Bitmap’s underlying pixel buffer data.

BitmapData sourceData = originalImage.LockBits
                        (new Rectangle(0, 0, originalImage.Width, originalImage.Height),
                        ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);


byte[] resultBuffer = new byte[sourceData.Stride * sourceData.Height];
Marshal.Copy(sourceData.Scan0, resultBuffer, 0, resultBuffer.Length);
originalImage.UnlockBits(sourceData);

The sample source code next iterates the pixel buffer array. Notice how the for loop increments by 4 with each loop. Every four elements of the data buffer in combination represents one pixel, each colour channel expressed as a byte value ranging from 0 to 255 inclusive.

for (int k = 0; k < resultBuffer.Length; k += 4)

If required each colour channel will first be assigned to a value equating to its inverse value by subtracting from 255.

if (swapFilterData.InvertColorsWhenSwapping == true)
{
     sourceBlue = (byte)(maxValue - sourceBlue);
     sourceGreen = (byte)(maxValue - sourceGreen);
     sourceRed = (byte)(maxValue - sourceRed);
}

When the supplied ColorSwapFilter object method parameter defines SwapHalfColorValues as true the source colour value will be divided by 2.

if (swapFilterData.SwapHalfColorValues == true)
{
     sourceBlue = (byte)(sourceBlue / byte2);
     sourceGreen = (byte)(sourceGreen / byte2);
     sourceRed = (byte)(sourceRed / byte2);
}

The next section implements a case statement, each option implementing the required colour channel swap algorithm. The last step expressed as part of the for loop results in assigning newly manipulated values to the data buffer.

The SwapColorsCopy extension method can be described as being immutable in the sense that the input value remains unchanged, instead manipulating and returning a copy of the input data. Following the data buffer iteration the sample source creates a new instance of the Bitmap class and locks it into memory by invoking the LockBits method. By implementing the Marshal.Copy method the source code copies the data buffer to the underlying buffer associated with the newly created Bitmap object.

 Bitmap resultBitmap = new Bitmap(originalImage.Width, originalImage.Height,
                                     PixelFormat.Format32bppArgb);


 BitmapData resultData = resultBitmap.LockBits
                         (new Rectangle(0, 0, resultBitmap.Width, resultBitmap.Height),
                         ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);


 Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
 resultBitmap.UnlockBits(resultData);


 return resultBitmap;

The implementation: a Windows Forms Application

The sample source code accompanying this article defines a Windows Forms application, the intention of which being to illustrate a test implementation. The following series of images were created using the sample application:

The source/input image is licenced under the Creative Commons Attribution-Share Alike 3.0 Unported, the original image can be downloaded from Wikipedia.

The Original Image

The ShiftLeft Colour Swapping algorithm:

Inverted:

The ShiftRight Colour Swapping algorithm:

Inverted:

The SwapBlueAndGreen Colour Swapping algorithm:

Inverted:

The SwapBlueAndRed Colour Swapping algorithm:

Inverted:

The SwapRedAndGreen Colour Swapping algorithm:

Inverted:

C# How to: Bitmap Colour Substitution implementing thresholds

Published March 16, 2013 Augmented Reality , C# , Code Samples , Extension Methods , Graphic Filters , Graphics , How to , Image Arithmetic , Image Filters , Image Processing , Learn Everyday , Microsoft , New Version , Opensource , Tip 41 Comments
Tags: 32Bit Argb, Alpha Red Green Blue, ARGB, ARGB Blending, Bitmap Filters, Bitmap.LockBits, BitmapData, C#, C# GDI, Code Sample, Color Filters, Color Substitution, Computer vision, Extension Methods, GDI, Graphic Filters, How to, Image Add, Image Algorithms, Image Filters, Image Manipulation, Image Transform, Machine vision, Open source, Pixel Manipulation, System.Drawing, System.Drawing.Bitmap

Article Purpose

This article is aimed at detailing how to implement the process of substituting the colour values that form part of a Bitmap image. Colour substitution is implemented by means of a threshold value. By implementing a threshold a range of similar colours can be substituted.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download here.

Using the sample Application

The provided sample source code builds a Windows Forms application which can be used to test/implement the concepts described in this article. The sample application enables the user to load an image file from the file system, the user can then specify the colour to replace, the replacement colour and the threshold to apply. The following image is a screenshot of the sample application in action.

The scenario detailed in the above screenshot shows the sample application being used to create an image where the sky has more of a bluish hue when compared to the original image.

Notice how replacement colour does not simply appear as a solid colour applied throughout. The replacement colour gets implemented matching the intensity of the colour being substituted.

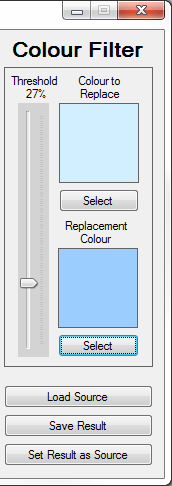

The colour filter options:

The colour to replace was taken from the original image, the replacement colour is specified through a colour picker dialog. When a user clicks on either image displayed, the colour of the image pixel clicked on sets the value of the replacement colour. By adjusting the threshold value the user can specify how wide or narrow the range of colours to replace should be. The higher the threshold value, the wider the range of colours that will be replaced.

The resulting image can be saved by clicking the “Save Result” button. In order to apply another colour substitution on the resulting image click the button labelled “Set Result as Source”.

Colour Substitution Filter Data

The sample source code provides the definition for the ColorSubstitutionFilter class. The purpose of this class is to contain data required when applying colour substitution. The ColorSubstitutionFilter class is defined as follows:

public class ColorSubstitutionFilter
{
    private int thresholdValue = 10;
    public int ThresholdValue
    {
        get { return thresholdValue; }
        set { thresholdValue = value; }
    }


    private Color sourceColor = Color.White;
    public Color SourceColor
    {
        get { return sourceColor; }
        set { sourceColor = value; }
    }


    private Color newColor = Color.White;
    public Color NewColor
    {
        get { return newColor; }
        set { newColor = value; }
    }
}

To implement a colour substitution filter we first have to create an object instance of type ColorSubstitutionFilter. A colour substitution requires specifying a SourceColor, which is the colour to replace/substitute and a NewColour, which defines the colour that will replace the SourceColour. Also required is a ThresholdValue, which determines a range of colours based on the SourceColor.

Colour Substitution implemented as an Extension method

The sample source code defines the ColorSubstitution extension method which targets the Bitmap class. Invoking the ColorSubstitution extension method requires passing a parameter of type ColorSubstitutionFilter, which defines how colour substitution is to be implemented. The following code snippet contains the definition of the ColorSubstitution method.

public static Bitmap ColorSubstitution(this Bitmap sourceBitmap, ColorSubstitutionFilter filterData)
{
    Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height, PixelFormat.Format32bppArgb);


    BitmapData sourceData = sourceBitmap.LockBits(new Rectangle(0, 0, sourceBitmap.Width, sourceBitmap.Height),
                                                  ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb);
    BitmapData resultData = resultBitmap.LockBits(new Rectangle(0, 0, resultBitmap.Width, resultBitmap.Height),
                                                  ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);


    byte[] resultBuffer = new byte[resultData.Stride * resultData.Height];
    Marshal.Copy(sourceData.Scan0, resultBuffer, 0, resultBuffer.Length);


    sourceBitmap.UnlockBits(sourceData);


    byte sourceRed = 0, sourceGreen = 0, sourceBlue = 0, sourceAlpha = 0;
    int resultRed = 0, resultGreen = 0, resultBlue = 0;


    byte newRedValue = filterData.NewColor.R;
    byte newGreenValue = filterData.NewColor.G;
    byte newBlueValue = filterData.NewColor.B;


    byte redFilter = filterData.SourceColor.R;
    byte greenFilter = filterData.SourceColor.G;
    byte blueFilter = filterData.SourceColor.B;


    byte minValue = 0;
    byte maxValue = 255;


    for (int k = 0; k < resultBuffer.Length; k += 4)
   {
        sourceAlpha = resultBuffer[k + 3];


        if (sourceAlpha != 0)
       {
            sourceBlue = resultBuffer[k];
            sourceGreen = resultBuffer[k + 1];
            sourceRed = resultBuffer[k + 2];


            if ((sourceBlue < blueFilter + filterData.ThresholdValue &&
                    sourceBlue > blueFilter - filterData.ThresholdValue) &&


                (sourceGreen < greenFilter + filterData.ThresholdValue &&
                    sourceGreen > greenFilter - filterData.ThresholdValue) &&


                (sourceRed < redFilter + filterData.ThresholdValue &&
                    sourceRed > redFilter - filterData.ThresholdValue))
           {
                resultBlue = blueFilter - sourceBlue + newBlueValue;


                if (resultBlue > maxValue)
               { resultBlue = maxValue;}
                else if (resultBlue < minValue)
               { resultBlue = minValue;}


                resultGreen = greenFilter - sourceGreen + newGreenValue;


                if (resultGreen > maxValue)
               { resultGreen = maxValue;}
                else if (resultGreen < minValue)
               { resultGreen = minValue;}


                resultRed = redFilter - sourceRed + newRedValue;


                if (resultRed > maxValue)
               { resultRed = maxValue;}
                else if (resultRed < minValue)
               { resultRed = minValue;}


                resultBuffer[k] = (byte)resultBlue;
                resultBuffer[k + 1] = (byte)resultGreen;
                resultBuffer[k + 2] = (byte)resultRed;
                resultBuffer[k + 3] = sourceAlpha;
           }
       }
   }


    Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
    resultBitmap.UnlockBits(resultData);


    return resultBitmap;
}

The ColorSubstitution method can be labelled as immutable due to its implementation. Being immutable implies that the source/input data will not be modified, instead a new instance will be created reflecting the source data as modified by the operations performed in the particular method.

The first statement defined in the ColorSubstitution method body instantiates an instance of a new Bitmap, matching the size dimensions of the source Bitmap object. Next the method invokes the Bitmap.LockBits method on the source and result Bitmap instances. When invoking Bitmap.LockBits the underlying data representing a Bitmap will be locked in memory. Being locked in memory can also be described as signalling/preventing the Garbage Collector to not move around in memory the data being locked. Invoking Bitmap.UnlockBits results in the Garbage Collector functioning as per normal, moving data in memory and updating the relevant memory references when required.

The source code continues by copying all the bytes representing the source Bitmap to an array of bytes that represents the resulting Bitmap. At this stage the source and result Bitmaps are exactly identical and as yet unmodified. In order to determine which pixels based on colour should be modified the source code iterates through the byte array associated with the result Bitmap.

Notice how the for loop increments by 4 with each loop. The underlying data represents a 32 Bits per pixel Argb image, which equates to 8 bits/1 byte representing an individual colour component, either Alpha, Red, Green or Blue. Defining the for loop to increment by 4 results in each loop iterating 4 bytes or 32 bits, in essence 1 pixel.

Within the for loop we determine if the colour expressed by the current pixel adjusted by the threshold value forms part of the colour range that should be updated. It is important to remember that an individual colour component is a byte value and can only be set to a value between 0 and 255 inclusive.

The Implementation

The ColorSubstitution method is implemented by the sample source code through a Windows Forms application. The ColorSubstitution method requires that the source Bitmap specified must be formatted as a 32 Bpp Argb image. When the user loads a source image from the file system the sample application attempts to convert the selected image file by invoking the extension method Format32bppArgbCopy which targets the Bitmap class. The definition is as follows:

public static Bitmap Format32bppArgbCopy(this Bitmap sourceBitmap)
{
    Bitmap copyBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height, PixelFormat.Format32bppArgb);


    using (Graphics graphicsObject = Graphics.FromImage(copyBitmap))
    {
        graphicsObject.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;
        graphicsObject.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
        graphicsObject.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality;
        graphicsObject.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;


        graphicsObject.DrawImage(sourceBitmap, new Rectangle(0, 0, sourceBitmap.Width, sourceBitmap.Height),
         new Rectangle(0, 0, sourceBitmap.Width, sourceBitmap.Height), GraphicsUnit.Pixel);
    }


    return copyBitmap;
}

Colour Substitution Examples

The following section illustrates a few examples of colour substitution result images. The source image features Bellis perennis also known as the common European Daisy (see Wikipedia). The image file is licensed under the Creative Commons Attribution-Share Alike 2.5 Generic license. The original image can be downloaded here. The following image is a scaled down version of the original:

Light Blue Colour Substitution

Colour Component	Source Colour	Substitute Colour
Red	255	121
Green	223	188
Blue	224	255

Medium Blue Colour Substitution

Colour Component	Source Colour	Substitute Colour
Red	255	34
Green	223	34
Blue	224	255

Medium Green Colour Substitution

Colour Component	Source Colour	Substitute Colour
Red	255	0
Green	223	128
Blue	224	0

Purple Colour Substitution

Colour Component	Source Colour	Substitute Colour
Red	255	128
Green	223	0
Blue	224	255

Software by Default

Posts Tagged 'Image Algorithms'

C# How to: Compass Edge Detection

Article Purpose

Sample Source Code

Using the Sample Application

Compass Edge Detection Overview

Rotating Convolution Kernels

Implementing Kernel Rotation

Implementing Compass Edge Detection

Sample Images

Related Articles and Feedback

Rate this:

Share this:

C# How to: Image Transform Shear

Article Purpose

Sample Source Code

Using the Sample Application

Image Shear Transformation

Implementing a Shear Transformation

Sample Images

Related Articles and Feedback

Rate this:

Share this:

C# How to: Swapping Bitmap ARGB Colour Channels

Article Purpose

Sample source code

Using the sample Application

Types of Colour Swapping

The Colour Swap Filter

Applying the Colour Swap Filter

The implementation: a Windows Forms Application

Related Articles and Feedback

Rate this:

Share this:

C# How to: Bitmap Colour Substitution implementing thresholds

Article Purpose

Sample source code

Using the sample Application

Colour Substitution Filter Data

Colour Substitution implemented as an Extension method

The Implementation

Colour Substitution Examples

Related Articles and Feedback

Rate this:

Share this:

Dewald Esterhuizen

RSS Feed

Recent Posts

Blog Stats

Follow SoftwareByDefault via Email

Categories

Top Posts & Pages

Archives

C# How to Articles

SoftwareByDefault Online References

Twitter feed

SoftwareByDefault on MSDN

MSDN Articles

Categories

Tags
