C# How to: Image Colour Average

Article purpose

This article’s intension is focussed on providing a discussion on the tasks involved in implementing Image Colour Averaging. Pixel colour averages are calculated from neighbouring pixels.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download .

Using the Sample Application

The sample source code associated with this article includes a based sample application. The sample application is provided with the intention of illustrating the concepts explored in this article. In addition the sample application serves as a means of testing and replicating results.

By clicking the Load Image button users are able to select input/source from the local system. On the right hand side of the screen various controls enable the user to control the implementation of colour averaging. The three labelled Red, Green and Blue relates to whether an individual colour component is to be included in calculating colour averages.

The filter intensity can be specified through selecting a filter size from the dropdown , specifying higher values will result in output images expressing more colour averaging intensity.

Additional image filter effects can be achieved through implementing colour component shifting/swapping. When colour components are shifted left the result will be:

  • Blue is set to the original value of the Red component.
  • Red is set to the original value of the Green component.
  • Green is set to the original value of the Blue component.

When colour components are shifted right the result will be:

  • Red is set to the original value of the Blue component
  • Blue is set to the original value of the Green component
  • Green is set to the original value of the Red Component

Resulting can be saved by the user to the local file system by clicking the Save Image button. The following image is a screenshot of the Image Colour Average sample application in action:

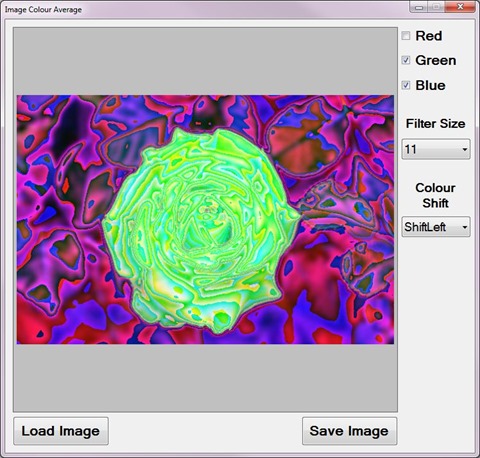

Image Colour Average Sample Application

Averaging Colours

In this article and the accompanying sample source code colour averaging is implemented on a per pixel basis. An average colour value is calculated based on a pixel’s neighbouring pixels’ colour. Determining neighbouring pixels in the sample source code has been implemented in much the same method as . The major difference to is the absence of a fixed /.

Additional resulting visual effects can be achieved through various options/settings implemented whilst calculating colour averages. Additional options include being able to specify which colour component averages to implement. Furthermore colour components can be swapped/shifted around.

The sample source code implements the AverageColoursFilter , targeting the class. The extent or degree to which colour averaging will be evident in resulting can be controlled through specifying different values set to the matrixSize parameter. The matrixSize parameter in essence determines the number of neighbouring pixels involved in calculating an average colour.

The individual pixel colour components Red, Green and Blue can either be included or excluded in calculating averages. The three method boolean parameters applyBlue, applyGreen and applyRed will determine an individual colour components inclusion in averaging calculations. If a colour component is to be excluded from averaging the resulting will instead express the original source/input image’s colour component.

The intensity of a specific colour component average can be applied to another colour component by means of swapping/shifting colour components, which is indicated through the shiftType method parameter.

The following code snippet provides the implementation of the AverageColoursFilter :

public static Bitmap AverageColoursFilter(
                            this Bitmap sourceBitmap,
                            int matrixSize,
                            bool applyBlue = true,
                            bool applyGreen = true,
                            bool applyRed = true,
                            ColorShiftType shiftType =
                            ColorShiftType.None)
{
    BitmapData sourceData =
               sourceBitmap.LockBits(new Rectangle(0, 0,
               sourceBitmap.Width, sourceBitmap.Height),
               ImageLockMode.ReadOnly,
               PixelFormat.Format32bppArgb);

byte[] pixelBuffer = new byte[sourceData.Stride * sourceData.Height];
byte[] resultBuffer = new byte[sourceData.Stride * sourceData.Height];
Marshal.Copy(sourceData.Scan0, pixelBuffer, 0, pixelBuffer.Length);
sourceBitmap.UnlockBits(sourceData);
int filterOffset = (matrixSize - 1) / 2; int calcOffset = 0;
int byteOffset = 0;
int blue = 0; int green = 0; int red = 0;
for (int offsetY = filterOffset; offsetY < sourceBitmap.Height - filterOffset; offsetY++) { for (int offsetX = filterOffset; offsetX < sourceBitmap.Width - filterOffset; offsetX++) { byteOffset = offsetY * sourceData.Stride + offsetX * 4;
blue = 0; green = 0; red = 0;
for (int filterY = -filterOffset; filterY <= filterOffset; filterY++) { for (int filterX = -filterOffset; filterX <= filterOffset; filterX++) { calcOffset = byteOffset + (filterX * 4) + (filterY * sourceData.Stride);
blue += pixelBuffer[calcOffset]; green += pixelBuffer[calcOffset + 1]; red += pixelBuffer[calcOffset + 2]; } }
blue = blue / matrixSize; green = green / matrixSize; red = red / matrixSize;
if (applyBlue == false) { blue = pixelBuffer[byteOffset]; }
if (applyGreen == false) { green = pixelBuffer[byteOffset + 1]; }
if (applyRed == false) { red = pixelBuffer[byteOffset + 2]; }
if (shiftType == ColorShiftType.None) { resultBuffer[byteOffset] = (byte)blue; resultBuffer[byteOffset + 1] = (byte)green; resultBuffer[byteOffset + 2] = (byte)red; resultBuffer[byteOffset + 3] = 255; } else if (shiftType == ColorShiftType.ShiftLeft) { resultBuffer[byteOffset] = (byte)green; resultBuffer[byteOffset + 1] = (byte)red; resultBuffer[byteOffset + 2] = (byte)blue; resultBuffer[byteOffset + 3] = 255; } else if (shiftType == ColorShiftType.ShiftRight) { resultBuffer[byteOffset] = (byte)red; resultBuffer[byteOffset + 1] = (byte)blue; resultBuffer[byteOffset + 2] = (byte)green; resultBuffer[byteOffset + 3] = 255; } } }
Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height);
BitmapData resultData = resultBitmap.LockBits(new Rectangle(0, 0, resultBitmap.Width, resultBitmap.Height), ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);
Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
resultBitmap.UnlockBits(resultData);
return resultBitmap; }

The definition of the ColorShiftType :

public enum ColorShiftType
{
    None,
    ShiftLeft,
    ShiftRight
}

Sample

The original image used in generating the sample images that form part of this article, has been licensed under the Attribution-Share Alike , , and license. The can be from .

Original Image

Rose_Amber_Flush_20070601

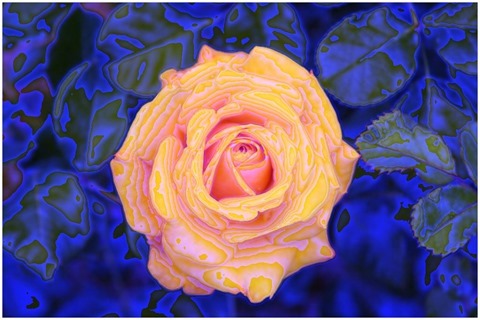

Colour Average Blue Size 11

Colour Average Blue Size 11

Colour Average Blue Size 11 Shift Left

Colour Average Blue Size 11 Shift Left

Colour Average Blue Size 11 Shift Right

Colour Average Blue Size 11 Shift Right

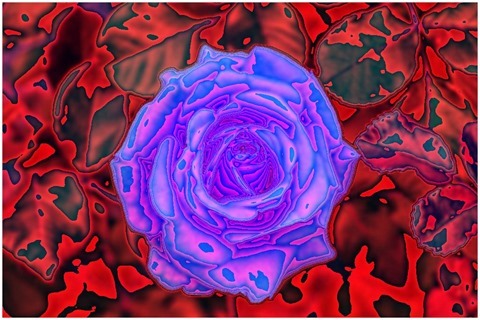

Colour Average Green Size 11 Shift Right

Colour Average Green Size 11 Shift Right

Colour Average Green, Blue Size 11

Colour Average Green, Blue Size 11

Colour Average Green, Blue Size 11 Shift Left

Colour Average Green, Blue Size 11 Shift Left

Colour Average Green, Blue Size 11 Shift Right

Colour Average Green, Blue Size 11 Shift Right

Colour Average Red Size 11

Colour Average Red Size 11

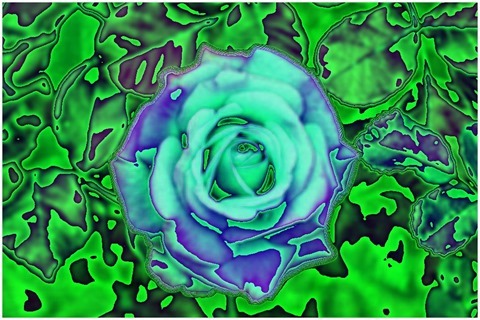

Colour Average Red Size 11 Shift Left

Colour Average Red Size 11 Shift Left

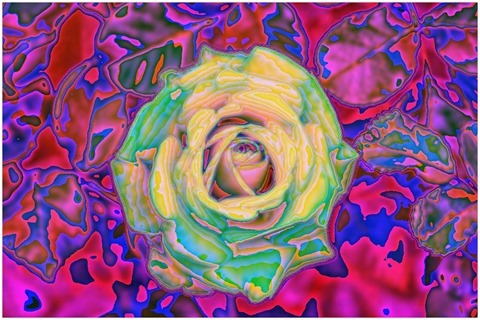

Colour Average Red, Blue Size 11

Colour Average Red, Blue Size 11

Colour Average Red, Blue Size 11 Shift Left

Colour Average Red, Blue Size 11 Shift Left

Colour Average Red, Green Size 11

Colour Average Red, Green Size 11

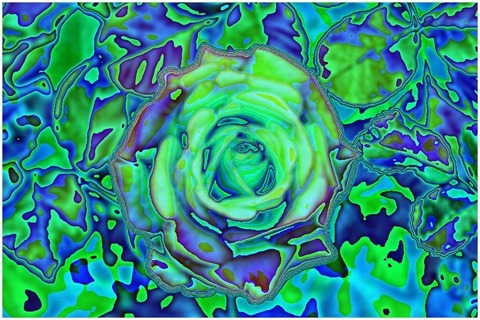

Colour Average Red, Green Size 11 Shift Left

Colour Average Red, Green Size 11 Shift Left

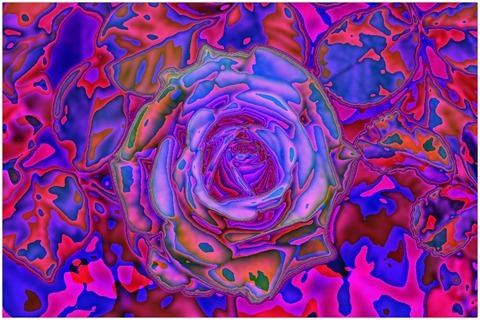

Colour Average Red, Green Size 11 Shift Right

Colour Average Red, Green Size 11 Shift Right

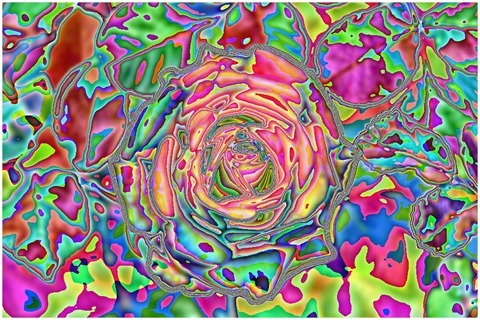

Colour Average Red, Green, Blue Size 11

Colour Average Red, Green, Blue Size 11

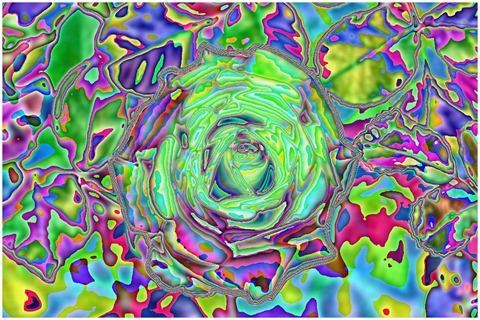

Colour Average Red, Green, Blue Size 11 Shift Left

Colour Average Red, Green, Blue Size 11 Shift Left

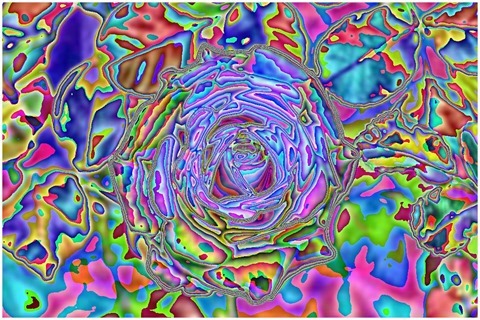

Colour Average Red, Green, Blue Size 11 Shift Right

Colour Average Red, Green, Blue Size 11 Shift Right

Related Articles and Feedback

Feedback and questions are always encouraged. If you know of an alternative implementation or have ideas on a more efficient implementation please share in the comments section.

I’ve published a number of articles related to imaging and images of which you can find URL links here:

C# How to: Image Median Filter

Article purpose

The objective of this article is focussed on providing a discussion on implementing a on an . This article illustrates varying levels of filter intensity: 3×3, 5×5, 7×7, 9×9, 11×11 and 13×13.

Sample source code

This article is accompanied by a sample source code Visual Studio project which is available for download .

Using the Sample Application

The concepts explored in this article can be easily replicated by making use of the Sample Application, which forms part of the associated sample source code accompanying this article.

When using the Image Median Filter sample application you can specify a input/source image by clicking the Load Image button. The dropdown combobox towards the bottom middle part of the screen relates the various levels of filter intensity.

If desired a user can save the resulting filtered image to the local file system by clicking the Save Image button.

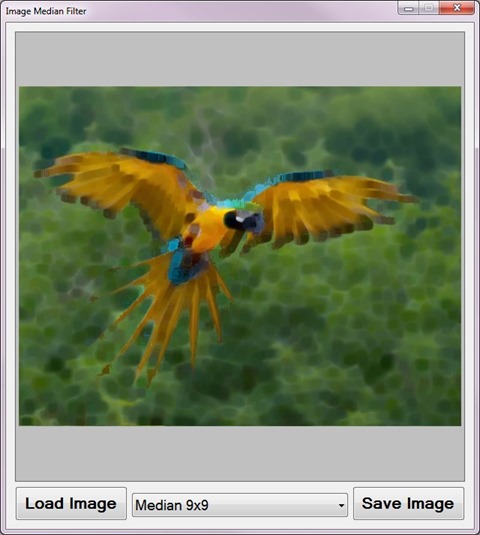

The following image is screenshot of the Image Median Filter sample application in action:

Image Median Filter Sample Application

What is a Median Filter

From we gain the following :

In , it is often desirable to be able to perform some kind of noise reduction on an image or signal. The median filter is a nonlinear technique, often used to remove noise. Such noise reduction is a typical pre-processing step to improve the results of later processing (for example, on an image). Median filtering is very widely used in digital because, under certain conditions, it preserves edges while removing noise (but see discussion below).

The main idea of the median filter is to run through the signal entry by entry, replacing each entry with the of neighboring entries. The pattern of neighbors is called the "window", which slides, entry by entry, over the entire signal. For 1D signals, the most obvious window is just the first few preceding and following entries, whereas for 2D (or higher-dimensional) signals such as images, more complex window patterns are possible (such as "box" or "cross" patterns). Note that if the window has an odd number of entries, then the is simple to define: it is just the middle value after all the entries in the window are sorted numerically. For an even number of entries, there is more than one possible median, see for more details.

In simple terms, a can be applied to in order to achieve smoothing or reduction. The in contrast to most smoothing methods, to a degree exhibits edge preservation properties.

Applying a Median Filter

The sample source code defines the MedianFilter targeting the class. The matrixSize parameter determines the intensity of the being applied.

The MedianFilter iterates each pixel of the source . When iterating pixels we determine the neighbouring pixels of the pixel currently being iterated. After having built up a list of neighbouring pixels, the List is then sorted and from there we determine the middle pixel value. The final step involves assigning the determined middle pixel to the current pixel in the resulting , represented as an array of pixel colour component .

public static Bitmap MedianFilter(this Bitmap sourceBitmap,
                                            int matrixSize,
                                              int bias = 0,
                                    bool grayscale = false)
{
    BitmapData sourceData =
               sourceBitmap.LockBits(new Rectangle (0, 0,
               sourceBitmap.Width, sourceBitmap.Height),
               ImageLockMode.ReadOnly,
               PixelFormat.Format32bppArgb);

byte[] pixelBuffer = new byte[sourceData.Stride * sourceData.Height];
byte[] resultBuffer = new byte[sourceData.Stride * sourceData.Height];
Marshal.Copy(sourceData.Scan0, pixelBuffer, 0, pixelBuffer.Length);
sourceBitmap.UnlockBits(sourceData);
if (grayscale == true) { float rgb = 0;
for (int k = 0; k < pixelBuffer.Length; k += 4) { rgb = pixelBuffer[k] * 0.11f; rgb += pixelBuffer[k + 1] * 0.59f; rgb += pixelBuffer[k + 2] * 0.3f;
pixelBuffer[k] = (byte )rgb; pixelBuffer[k + 1] = pixelBuffer[k]; pixelBuffer[k + 2] = pixelBuffer[k]; pixelBuffer[k + 3] = 255; } }
int filterOffset = (matrixSize - 1) / 2; int calcOffset = 0;
int byteOffset = 0; List<int> neighbourPixels = new List<int>(); byte[] middlePixel;
for (int offsetY = filterOffset; offsetY < sourceBitmap.Height - filterOffset; offsetY++) { for (int offsetX = filterOffset; offsetX < sourceBitmap.Width - filterOffset; offsetX++) { byteOffset = offsetY * sourceData.Stride + offsetX * 4;
neighbourPixels.Clear();
for (int filterY = -filterOffset; filterY <= filterOffset; filterY++) { for (int filterX = -filterOffset; filterX <= filterOffset; filterX++) {
calcOffset = byteOffset + (filterX * 4) + (filterY * sourceData.Stride);
neighbourPixels.Add(BitConverter.ToInt32( pixelBuffer, calcOffset)); } }
neighbourPixels.Sort(); middlePixel = BitConverter.GetBytes( neighbourPixels[filterOffset]);
resultBuffer[byteOffset] = middlePixel[0]; resultBuffer[byteOffset + 1] = middlePixel[1]; resultBuffer[byteOffset + 2] = middlePixel[2]; resultBuffer[byteOffset + 3] = middlePixel[3]; } }
Bitmap resultBitmap = new Bitmap(sourceBitmap.Width, sourceBitmap.Height);
BitmapData resultData = resultBitmap.LockBits(new Rectangle (0, 0, resultBitmap.Width, resultBitmap.Height), ImageLockMode.WriteOnly, PixelFormat.Format32bppArgb);
Marshal.Copy(resultBuffer, 0, resultData.Scan0, resultBuffer.Length);
resultBitmap.UnlockBits(resultData);
return resultBitmap; }

Sample Images

The sample images illustrated in this article were rendered from the same source image which is licensed under the Creative Commons Attribution-Share Alike 3.0 Unported, 2.5 Generic, 2.0 Generic and 1.0 Generic license. The original image is attributed to Luc Viatourwww.Lucnix.be and can be downloaded from Wikipedia.

The Original Source Image

Ara_ararauna_Luc_Viatour

Median 3×3 Filter

Median Filter 3x3

Median 5×5 Filter

Median Filter 5x5

Median 7×7 Filter

Median Filter 7x7

Median 9×9 Filter

Median Filter 9x9

Median 11×11 Filter

Median Filter 11x11

Median 13×13 Filter

Median Filter 13x13

Related Articles and Feedback

Feedback and questions are always encouraged. If you know of an alternative implementation or have ideas on a more efficient implementation please share in the comments section.

I’ve published a number of articles related to imaging and images of which you can find URL links here:

C# How to: Blending Bitmap images using colour filters

Article purpose

In this we explore how to combine or blend two by implementing various colour filters affecting how an appear as part of the resulting blended . The concepts detailed in this are reinforced and easily reproduced by making use of the sample source code that accompanies this .

Sample source code

This is accompanied by a sample source code Visual Studio project which is available for download .

Using the sample Application

The provided sample source code builds a which can be used to blend two separate files read from the file system. The methods employed when applying blending operations on two can be adjusted to a fine degree when using the sample application. In addition the sample application provides the functionality allowing the user to save the resulting blended and also being able to save the exact colour filters/algorithms that were applied. Filters created and saved previously can be loaded from the file system allowing users to apply the exact same filtering without having to reconfigure filtering as exposed through the application front end.

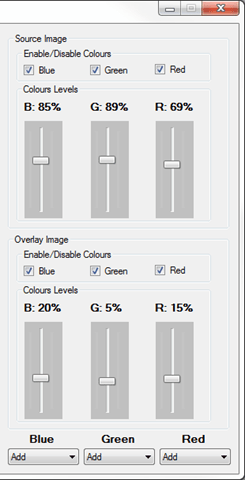

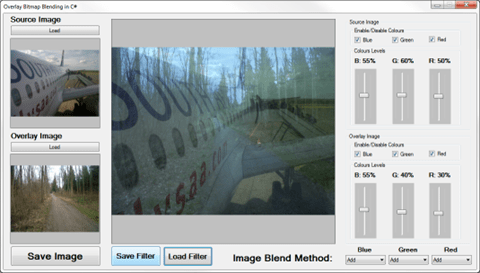

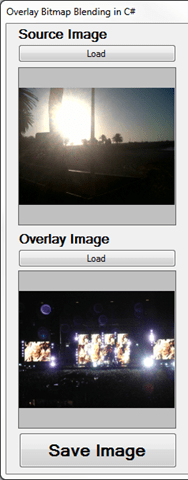

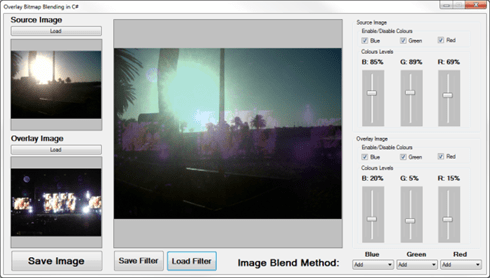

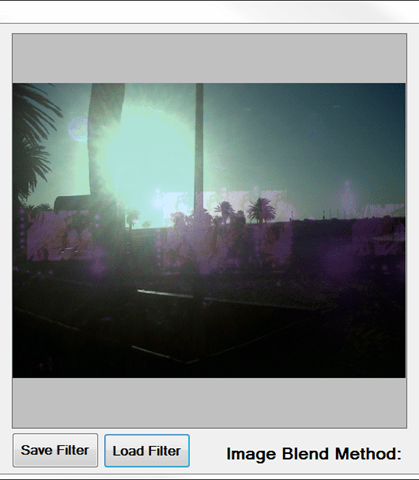

Here is a screenshot of the sample application in action:

Blending Bitmap images using colour filters

This scenario blends an of an airplane with an of a pathway in a forest. As a result of the colour filtering implemented when blending the two the output appears to provide somewhat equal elements of both , without expressing all the elements of the original .

What is Colour Filtering?

In general terms making reference to a filter would imply some or other mechanism being capable of sorting or providing selective inclusion/exclusion. There is a vast number of filter algorithms in existence, each applying some form of logic in order to achieve a desired outcome.

In C# implementing colour filter algorithms targeting have the ability to modify or manipulate the colour values expressed by an . The extent to which colour values change as well as the level of detail implemented  is determined by the algorithms/calculations performed when a filter operation becomes active.

An can be thought of as being similar to a two dimensional array with each array element representing the data required to be expressed as an individual pixel. Two dimensional arrays are similar to the concept of a grid defined by rows and columns. The “rows” of pixels represented by an are required to all be of equal length. When thinking in terms of a two dimensional array or grid analogy its likely to make sense that the number of rows and columns in fact translate to an ’s width and height.

An ’s colour data can be expressed beyond rows and columns of pixels. Each pixel contained in an defines a colour value. In this we focus on 32bit of type ARGB.

Image Bit Depth and Pixel Colour components

bit depth is also referred to as the number of bits per pixel. Bits per pixel (Bpp) is an indicator of the amount of storage space required to store an image. A bit value is smallest unit of storage available in a storage medium, it can simply be referred to as being either a value of 1 or 0.

In C# natively the smallest unit of storage expressed comes in the form of the integral type. A value occupies 8 bits of storage, it is not possible in C# to express a value as a bit. The .net framework provides functionality enabling developers to develop in the concept of bit values, which in reality occupies far more than 1 bit of memory when implemented.

If we consider as an example an formatted as 32 bits per pixel, as the name implies, for each pixel contained in an 32 bits of additional storage is required. Knowing that a represents 8 bits logic dictates that 32 bits are equal to four , determined by dividing 32 bits by 8. as 32 bits per pixel therefore can be considered as being encoded as 4 per pixel images. 32 Bpp require 4 to express a single pixel.

The data represented by a pixel’s bytes

32 Bpp equating to 4 per pixel, each in turn representing a colour component, together being capable of expressing a single colour representing the underlying pixel. When an format is referred to as 32 Bpp Argb the four colour components contained in each pixel are: Red, Green, Blue and the Alpha component.

An Alpha component is in indication of a particular pixel’s transparency. Each colour component is represented by a value. The possible value range in terms of stretch from 0 to 255, inclusive, therefore a colour component can only contain a value within this range. A colour value is in fact a representation of that colour’s intensity associated with a single image pixel. A value of 0 indicating the highest possible intensity and 255 reflecting no intensity at all. When the Alpha component is set to a value of 255 it is an expression of no transparency. In the  same fashion when an Alpha component equates to 0 the associated pixel is considered completely transparent, thus negating whatever colour values are expressed by the remaining colour components.

Take note that not all support transparency, almost similar to how certain can only represent grayscale or just black and white pixels. An expressed only in terms of Red, Blue and Green colour values, containing no Alpha component can be implemented as a 24 Bit RGB . Each pixel’s storage requirement being 24 bits or 3 bytes, representing colour intensity values for Red, Green and Blue, each limited to a value ranging from 0 to 255.

Manipulating a Pixel’s individual colour components

In C# it is possible to manipulate the value of a pixel’s individual colour components. Updating the value expressed by a colour component will most likely result in the colour value expressed by the pixel as a whole to also change. The resulting change affects the colour component’s intensity. As an example, if you were to double the value of the Blue colour component the result will most likely be that the associated pixel will represent a colour having twice the intensity of Blue when compared to the previous value.

When you manipulate colour components you are in affect applying a colour filter to the underlying . Iterating the values and performing updates based on a calculation or a conditional check qualifies as an algorithm, an /colour filter in other words.

Retrieving Image Colour components as an array of bytes

As a result of the .net Framework’s memory handling infrastructure and the implementation of the it is a likely possibility that the memory address assigned to a variable when instantiated could change during the variable’s lifetime and scope, not necessarily reflecting the same address in memory when going out of scope. It is the responsibility of the to ensure updating a variable’s memory reference when an operation performed by the results in values kept in memory moving to a new address in memory.

When accessing an ’s underlying data expressed as a array we require a mechanism to signal the that an additional memory reference exist, which might not be updated when values shift in memory  to a new address.

The class provides the method, when invoked the values representing pixel data will not be moved in memory by the until the values are unlocked by invoking the method also defined by the class.

The method defines a return value of type , which contains data related to the lock operation. When invoking the method you are required to pass the object returned when you invoked .

The method provides an overridden implementation allowing the calling code to specify only a certain part of a to lock in memory, expressed as

The sample code that accompanies this updates the entire and therefore specifies the portion to lock as a equal in size to the whole .

The class defines the property of type . contains the address in memory of the ’s first pixel, in other words the starting point of a ’s underlying data.

Creating an algorithm to Filter Bitmap Colour components

The sample code is implemented to blend two , considering one as as source or base canvas and the second as an overlay . The algorithm used to implement a blending operation is defined as a class exposing public properties which affect how blending is achieved.

The source code that implements the algorithm functions by creating an object instance of BitmapFilterData class and setting the associated public properties to certain values, as specified by the user through the user interface at runtime. The BitmapFilterData class can thus be considered to qualify as a dynamic algorithm. The following source code contains the definition of the BitmapFilterData class.

[Serializable]
public class BitmapFilterData
{
    private bool sourceBlueEnabled = false;
    public bool SourceBlueEnabled { get { return sourceBlueEnabled; }set { sourceBlueEnabled = value; } }

private bool sourceGreenEnabled = false; public bool SourceGreenEnabled { get { return sourceGreenEnabled; }set { sourceGreenEnabled = value; } }
private bool sourceRedEnabled = false; public bool SourceRedEnabled { get { return sourceRedEnabled; } set { sourceRedEnabled = value; } }
private bool overlayBlueEnabled = false; public bool OverlayBlueEnabled { get { return overlayBlueEnabled; } set { overlayBlueEnabled = value; } }
private bool overlayGreenEnabled = false; public bool OverlayGreenEnabled { get { return overlayGreenEnabled; } set { overlayGreenEnabled = value; } }
private bool overlayRedEnabled = false; public bool OverlayRedEnabled { get { return overlayRedEnabled; }set { overlayRedEnabled = value; } }
private float sourceBlueLevel = 1.0f; public float SourceBlueLevel { get { return sourceBlueLevel; } set { sourceBlueLevel = value; } }
private float sourceGreenLevel = 1.0f; public float SourceGreenLevel { get { return sourceGreenLevel; } set { sourceGreenLevel = value; } }
private float sourceRedLevel = 1.0f; public float SourceRedLevel {get { return sourceRedLevel; } set { sourceRedLevel = value; } }
private float overlayBlueLevel = 0.0f; public float OverlayBlueLevel { get { return overlayBlueLevel; } set { overlayBlueLevel = value; } }
private float overlayGreenLevel = 0.0f; public float OverlayGreenLevel { get { return overlayGreenLevel; } set { overlayGreenLevel = value; } }
private float overlayRedLevel = 0.0f; public float OverlayRedLevel { get { return overlayRedLevel; } set { overlayRedLevel = value; } }
private ColorComponentBlendType blendTypeBlue = ColorComponentBlendType.Add; public ColorComponentBlendType BlendTypeBlue { get { return blendTypeBlue; }set { blendTypeBlue = value; } }
private ColorComponentBlendType blendTypeGreen = ColorComponentBlendType.Add; public ColorComponentBlendType BlendTypeGreen { get { return blendTypeGreen; } set { blendTypeGreen = value; } }
private ColorComponentBlendType blendTypeRed = ColorComponentBlendType.Add; public ColorComponentBlendType BlendTypeRed { get { return blendTypeRed; } set { blendTypeRed = value; } }
public static string XmlSerialize(BitmapFilterData filterData) { XmlSerializer xmlSerializer = new XmlSerializer(typeof(BitmapFilterData));
XmlWriterSettings xmlSettings = new XmlWriterSettings(); xmlSettings.Encoding = Encoding.UTF8; xmlSettings.Indent = true;
MemoryStream memoryStream = new MemoryStream(); XmlWriter xmlWriter = XmlWriter.Create(memoryStream, xmlSettings);
xmlSerializer.Serialize(xmlWriter, filterData); xmlWriter.Flush();
string xmlString = xmlSettings.Encoding.GetString(memoryStream.ToArray());
xmlWriter.Close(); memoryStream.Close(); memoryStream.Dispose();
return xmlString; }
public static BitmapFilterData XmlDeserialize(string xmlString) { XmlSerializer xmlSerializer = new XmlSerializer(typeof(BitmapFilterData)); MemoryStream memoryStream = new MemoryStream(Encoding.UTF8.GetBytes(xmlString));
XmlReader xmlReader = XmlReader.Create(memoryStream);
BitmapFilterData filterData = null;
if(xmlSerializer.CanDeserialize(xmlReader) == true) { xmlReader.Close(); memoryStream.Position = 0;
filterData = (BitmapFilterData)xmlSerializer.Deserialize(memoryStream); }
memoryStream.Close(); memoryStream.Dispose();
return filterData; } }
public enum ColorComponentBlendType { Add, Subtract, Average, DescendingOrder, AscendingOrder }

The BitmapFilterData class define 6 public properties relating to whether a colour component should be included in calculating the specific component’s new value. The properties are:

  • SourceBlueEnabled
  • SourceGreenEnabled
  • SourceRedEnabled
  • OverlayBlueEnabled
  • OverlayGreenEnabled
  • OverlayRedEnabled

In addition a further 6 related public properties are defined which dictate a factor by which to apply a colour component as input towards the value of the resulting colour component. The properties are:

  • SourceBlueLevel
  • SourceGreenLevel
  • SourceRedLevel
  • OverlayBlueLevel
  • OverlayGreenLevel
  • OverlayRedLevel

Only if a colour component’s related Enabled property is set to true will the associated Level property be applicable when calculating the new value of the colour component.

The BitmapFilterData class next defines 3 public properties of type ColorComponentBlendType. This ’s value determines the calculation performed between source and overlay colour components. Only after each colour component has been modified by applying the associated Level property factor will the calculation defined by the ColorComponentBlendType value be performed.

Source and Overlay colour components can be Added together, Subtracted, Averaged, Discard Larger value or Discard Smaller value. The 3 public properties that define the calculation type to be performed are:

  • BlendTypeBlue
  • BlendTypeGreen
  • BlendTypeRed

Notice the two public method defined by the BitmapFilterData class, XmlSerialize and XmlDeserialize. These two methods enables the calling code to Xml serialize a BitmapFilterData object to a string variable containing the object’s Xml representation, or to create an object instance based on an Xml representation.

The sample application implements Xml serialization and deserialization when saving a BitmapFilterData object to the file system and when creating a BitmapFilterData object previously saved on the file system.

Bitmap Blending Implemented as an extension method

The sample source code provides the definition for the BlendImage method, an targeting the class. This method creates a new memory , of which the colour values are calculated from a source and an overlay as defined by a BitmapFilterData object instance parameter. The source code listing for the BlendImage method:

public static Bitmap BlendImage(this Bitmap baseImage, Bitmap overlayImage, BitmapFilterData filterData)
{
    BitmapData baseImageData = baseImage.LockBits(new Rectangle(0, 0, baseImage.Width, baseImage.Height),
      System.Drawing.Imaging.ImageLockMode.ReadWrite, System.Drawing.Imaging.PixelFormat.Format32bppArgb);
    byte[] baseImageBuffer = new byte[baseImageData.Stride * baseImageData.Height];

Marshal.Copy(baseImageData.Scan0, baseImageBuffer, 0, baseImageBuffer.Length);
BitmapData overlayImageData = overlayImage.LockBits(new Rectangle(0, 0, overlayImage.Width, overlayImage.Height),
                   System.Drawing.Imaging.ImageLockMode.ReadOnly, System.Drawing.Imaging.PixelFormat.Format32bppArgb);
    byte[] overlayImageBuffer = new byte[overlayImageData.Stride * overlayImageData.Height];

Marshal.Copy(overlayImageData.Scan0, overlayImageBuffer, 0, overlayImageBuffer.Length);
float sourceBlue = 0; float sourceGreen = 0; float sourceRed = 0;
float overlayBlue = 0; float overlayGreen = 0; float overlayRed = 0;
for (int k = 0; k < baseImageBuffer.Length && k < overlayImageBuffer.Length; k += 4) { sourceBlue = (filterData.SourceBlueEnabled ? baseImageBuffer[k] * filterData.SourceBlueLevel : 0); sourceGreen = (filterData.SourceGreenEnabled ? baseImageBuffer[k+1] * filterData.SourceGreenLevel : 0); sourceRed = (filterData.SourceRedEnabled ? baseImageBuffer[k+2] * filterData.SourceRedLevel : 0);
overlayBlue = (filterData.OverlayBlueEnabled ? overlayImageBuffer[k] * filterData.OverlayBlueLevel : 0); overlayGreen = (filterData.OverlayGreenEnabled ? overlayImageBuffer[k + 1] * filterData.OverlayGreenLevel : 0); overlayRed = (filterData.OverlayRedEnabled ? overlayImageBuffer[k + 2] * filterData.OverlayRedLevel : 0);
baseImageBuffer[k] = CalculateColorComponentBlendValue(sourceBlue, overlayBlue, filterData.BlendTypeBlue); baseImageBuffer[k + 1] = CalculateColorComponentBlendValue(sourceGreen, overlayGreen, filterData.BlendTypeGreen); baseImageBuffer[k + 2] = CalculateColorComponentBlendValue(sourceRed, overlayRed, filterData.BlendTypeRed); }
Bitmap bitmapResult = new Bitmap(baseImage.Width, baseImage.Height, PixelFormat.Format32bppArgb); BitmapData resultImageData = bitmapResult.LockBits(new Rectangle(0, 0, bitmapResult.Width, bitmapResult.Height),
                 System.Drawing.Imaging.ImageLockMode.WriteOnly, System.Drawing.Imaging.PixelFormat.Format32bppArgb);

Marshal.Copy(baseImageBuffer, 0, resultImageData.Scan0, baseImageBuffer.Length);
bitmapResult.UnlockBits(resultImageData); baseImage.UnlockBits(baseImageData); overlayImage.UnlockBits(overlayImageData);
return bitmapResult; }

The BlendImage method starts off by creating 2 arrays, intended to contain the source and overlay ’s pixel data, expressed in 32 Bits per pixel Argb . As discussed earlier, both ’s data are locked in memory by invoking the method.

Before copying values we first need to declare a array to copy to. The size in of a ’s raw data can be determined by multiplying and  . We obtained an instance of the class when we invoked . The associated object contains data about the lock operation, hence it needs to be supplied as a parameter when unlocking the bits when invoking .

The property refers to the ’s scan width. The property can also be described as the total number of colour components found within one row of pixels from a . Note that the property is rounded up to a four boundary. We can make the deduction that the property modulus 4 would always equal 0. The source code multiplies the property and the property.  Also known as the number of scan lines, the property is equal to the ’s height in pixels from which the object was derived.

Multiplying and   can be considered the same as multiplying an ’s bit depth, Width and also Height.

Once the two arrays have been obtained from the source and overlay the sample source iterates both arrays simultaneously. Notice how the code iterates through the arrays, the for loop increment statement being incremented by a value of 4 each time the loop executes. The for loop executes in terms of pixel values, remember that one pixel consists of 4 /colour components when the has been encoded as a 32Bit Argb .

Within the for loop the code firstly calculates a value for each colour component, except the Alpha  component. The calculation is based on the values defined by the BitmapFilterData object.

Did you notice that the source code assigns colour components in the order of Blue, Green, Red? An easy oversight when it comes to manipulating Bitmaps comes in the form of not remembering the correct order of colour components. The pixel format is referred to as 32bppArgb, in fact most references state Argb being Alpha, Red, Green and Blue.  The colour components representing a pixel are in fact ordered Blue, Green, Red and Alpha, the exact opposite to most naming conventions. Since the for loop’s increment statement increments by four with each loop we can access the Green, Red and Alpha components by adding the values 1, 2 or 3 to the loop’s index component, in this case defined as the variable k. Remember the colour component ordering, it can make for some interesting unintended consequences/features.

If a colour component is set to disabled in the BitmapFilterData object the new colour component will be set to a value of 0. Whilst iterating the arrays a set of calculations are also performed as defined by each colour component’s associated ColorComponentBlendType, defined by the BitmapFilterData object. The calculations are implemented by invoking the CalculateColorComponentBlendValue method.

Once all calculations are completed a new object is created to which the updated pixel data is copied only after the newly created has been locked in memory. Before returning the which now contains the blended colour component values all are unlocked in memory.

Calculating Colour component Blend Values

The CalculateColorComponentBlendValue method is implemented to calculate blend values as follows:

private static byte CalculateColorComponentBlendValue(float source, float overlay, ColorComponentBlendType blendType)
{
    float resultValue = 0;
    byte resultByte = 0;

if (blendType == ColorComponentBlendType.Add) { resultValue = source + overlay; } else if (blendType == ColorComponentBlendType.Subtract) { resultValue = source - overlay; } else if (blendType == ColorComponentBlendType.Average) { resultValue = (source + overlay) / 2.0f; else if (blendType == ColorComponentBlendType.AscendingOrder) { resultValue = (source > overlay ? overlay : source); } else if (blendType == ColorComponentBlendType.DescendingOrder) { resultValue = (source < overlay ? overlay : source); }
if (resultValue > 255) { resultByte = 255; } else if (resultValue < 0) { resultByte = 0; } else { resultByte = (byte)resultValue; }
return resultByte; }

Different sets of calculations are performed  for each colour component based on the Blend type specified by the BitmapFilterData object. It is important to note that before the method returns a result a check is performed ensuring the new colour component’s value falls within the valid range of values, 0 to 255. Should a value exceed 255 that value will be assigned to 255, also if a value is negative that value will be assigned to 0.

The implementation – A Windows Forms Application

The accompanying source code defines a . The ImageBlending application enables a user to specify the source and overlay input , both of which are displayed in a scaled size on the left-hand side of the . On the right-hand side of the users are presented with various controls that can be used to adjust the current colour filtering algorithm.

The following screenshot shows the user specified input source and overlay :

Blending Bitmap images using colour filters

The next screenshot details the controls available which can be used to modify the colour filtering algorithm being applied:

Blending Bitmap images using colour filters

Notice the checkboxes labelled Blue, Green and Red, the check state determines whether the associated colour component’s value will be used in calculations. The six trackbar controls shown above can be used to set the exact factoring value applied to the associated colour component when implementing the colour filter. Lastly towards the bottom of the screen the three comboboxes provided indicate the ColorComponentBlendType value implemented in the colour filter calculations.

The blended output implementing the specified colour filter is located towards the middle of the . Remember in the screenshot shown above, the input being of a beach scene and the overlay being a rock concert at night. The degree and intensity towards how colours from both feature in the output is determined by the colour filter, as defined earlier through the user interface.

Blending Bitmap images using colour filters

Towards the bottom of this part of the screen two buttons can be seen, labelled “Save Filter” and “Load Filter”. When a user creates a filter the filter values can be persisted to the file system by clicking Save Filter and specifying a file path. To implement a colour filter created and saved earlier users can click the Load Filter button and file browse to the correct file.

For the sake of clarity the screenshot featured below captures the entire application front end. The previous images consist of parts taken from this image:

Blending Bitmap images using colour filters

The trackbar controls provided by the user interface enables a user to quickly and effortlessly test a colour filter. The ImageBlend application has been implemented to provide instant feedback/processing based on user input. Changing any of the colour filter values exposed by the user interface results in the colour filter being applied instantly.

Loading a Source Image

When the user clicks on the Load button associated with source a standard Open File Dialog displays prompting the user to select a source file. Once a source file has been selected the ImageBlend application creates a memory from the file system . The method in which colour filtering is implemented requires that input files have a bit depth of 32 bits and is formatted as an Argb . If a user attempts to specify an that is not in a 32bppArgb format the source code will attempt to convert the input image to the correct format by making use of LoadArgbBitmap .

Converting to the 32BppArgb format

The sample source code defines the LoadArgbBitmap targeting the string class. In addition to converting , this method can also be implemented to resize provided . The LoadArgbBitmap method is invoked when a user specifies a source and also when specifying an overlay . In order to provide better colour filtering source and overlay are required to be the same size. Source are never resized, only overlay images are resized to match the size dimensions of the specified source . The following code snippet provides the implementation of the LoadArgbBitmap method:

public  static  Bitmap  LoadArgbBitmap(this  string  filePath, Size? imageDimensions = null )
{
    StreamReader streamReader = new  StreamReader(filePath);
    Bitmap  fileBmp = (Bitmap)Bitmap.FromStream(streamReader.BaseStream);
    streamReader.Close();

int width = fileBmp.Width; int height = fileBmp.Height;
if(imageDimensions != null) { width = imageDimensions.Value.Width; height = imageDimensions.Value.Height; }
if(fileBmp.PixelFormat != PixelFormat.Format32bppArgb || fileBmp.Width != width || fileBmp.Height != height) { fileBmp = GetArgbCopy(fileBmp, width, height); }
return fileBmp; }

are only resized if the required size is known and if an is not already the same size specified as the required size. A scenario where the required size might not yet be known can occur when the user first selects an overlay with no source specified yet. Whenever the source changes the overlay is recreated from the file system and resized if needed.

If the specified does not conform to a 32bppArgb the LoadArgbBitmap invokes the GetArgbCopy method, which is defined as follows:

private static Bitmap GetArgbCopy(Bitmap sourceImage, int width, int height)
{
    Bitmap bmpNew = new Bitmap(width, height, PixelFormat.Format32bppArgb);

using (Graphics graphics = Graphics.FromImage(bmpNew)) { graphics.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality; graphics.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBilinear; graphics.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality; graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality; graphics.DrawImage(sourceImage, new Rectangle(0, 0, bmpNew.Width, bmpNew.Height), new Rectangle(0, 0, sourceImage.Width, sourceImage.Height), GraphicsUnit.Pixel); graphics.Flush(); }
return bmpNew; }

The GetArgbCopy method implements GDI drawing using the class in order to resize an .

Bitmap Blending examples

RHCP1

RHCP5

DayNightBlend

In the example above two photos were taken from the same location. The first photo was taken in the late afternoon, the second once it was dark. The resulting blended appears to show the time of day being closer to sundown than in the first photo. The darker colours from the second photo are mostly excluded by the filter, lighter elements such as the stage lighting appear pronounced as a yellow tint in the output .

The filter values specified are listed below as Xml. To reproduce the filter you can copy the Xml markup and save to disk specifying the file extension *.xbmp.

<?xml version="1.0" encoding="utf-8"?>
<BitmapFilterData xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <SourceBlueEnabled>true</SourceBlueEnabled>
  <SourceGreenEnabled>true</SourceGreenEnabled>
  <SourceRedEnabled>true</SourceRedEnabled>
  <OverlayBlueEnabled>true</OverlayBlueEnabled>
  <OverlayGreenEnabled>true</OverlayGreenEnabled>
  <OverlayRedEnabled>true</OverlayRedEnabled>
  <SourceBlueLevel>0.5</SourceBlueLevel>
  <SourceGreenLevel>0.3</SourceGreenLevel>
  <SourceRedLevel>0.2</SourceRedLevel>
  <OverlayBlueLevel>0.75</OverlayBlueLevel>
  <OverlayGreenLevel>0.5</OverlayGreenLevel>
  <OverlayRedLevel>0.6</OverlayRedLevel>
  <BlendTypeBlue>Subtract</BlendTypeBlue>
  <BlendTypeGreen>Add</BlendTypeGreen>
  <BlendTypeRed>Add</BlendTypeRed>
</BitmapFilterData>

Blending two night time :

RHCP5

RHCP6

NightTimePhotoBlend

Fun Fact: In this some of the photos featured were taken at a live concert of The Red Hot Chilli Peppers, performing at Soccer City, Johannesburg, South Africa.

Related Articles


Dewald Esterhuizen

Blog Stats

  • 435,579 hits

Enter your email address to follow and receive notifications of new posts by email.

Join 204 other followers

Archives

Twitter feed


%d bloggers like this:
